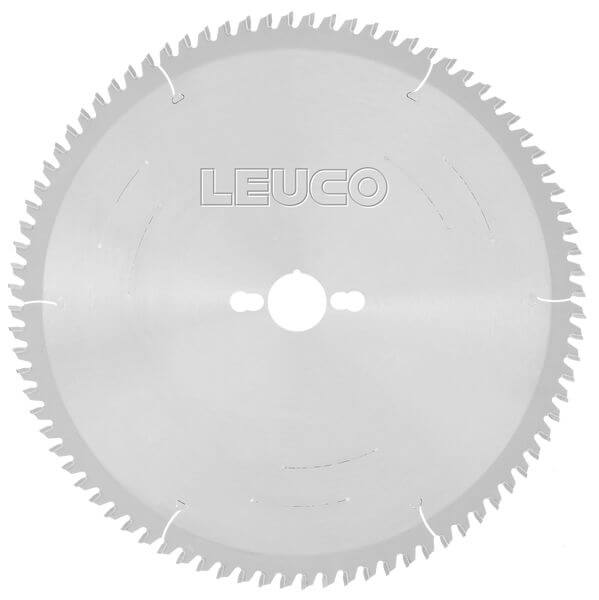

Sizing Saw Blades HW "WS-FA" - plastics

Product

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • table saws
  • vertical panel sizing saws
  • for finish cuts in varying thermoplastic materials, even with thickness > 15mm

Design

  • saw blade body coating: non-stick effect and corrosion protection
  • with laser ornaments
  • tooth configuration: alternate top bevel with chamfer "WS-FA"
  • cutting material: HW HL Board 06

Advantages

  • thinner cutting width  for reduced cutting pressure, also in thicker materials
  • less vibration and noise thanks to laser ornaments

Notes

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z NL Hook angle
[°]
Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

303 2,8 2.2 30 96 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 -3 WS-FA HL Board 06 193378
|
