Scoring Saw Blades HW - adjustable "F"

Product

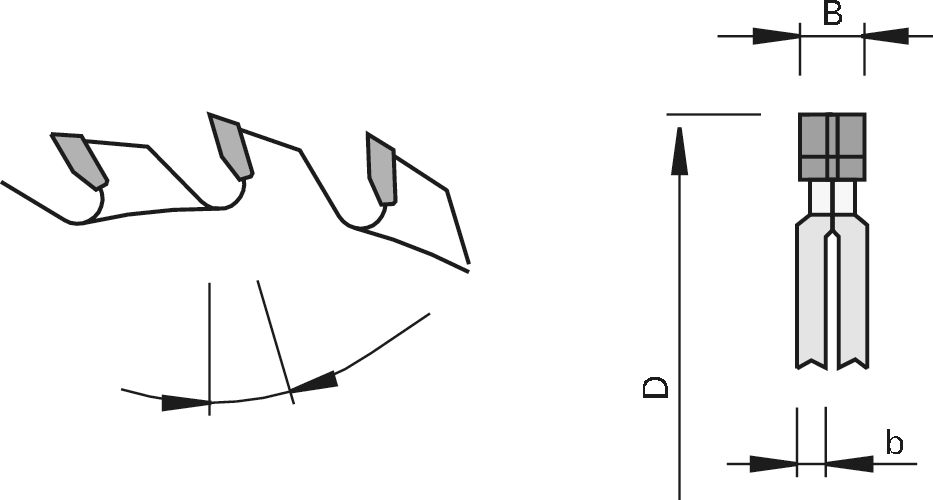

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • table saws
  • panel sizing saws
  • panel sizing saws with controllable scoring device
  • for scoring of plastic-laminated panels

Design

  • tooth configuration: flat "F"
  • cutting material: HW HL Board 03

Advantages

  • universally applicable

Notes

  • split version - cutting width adjustable with spacers
  • for main/scoring saw combinations see specifications (Technical Appendix)
  • X = Orginal Striebig Scoring Saw Blades, cutting width adjustable

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø D1
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

70 2,8-3,6 2.2 44 20 2x8 12 F HL Board 03 Putsch 193252
|
80 2,8-3,6 2.2 54 20 2x6 2/4/34 10 F HL Board 03 Striebig 9201253
|
80 2,8-3,6 2.2 54 20 2x10 12 F HL Board 03 Striebig 193253
|
120 2,8-3,6 2.2 94 20 2x12 12 F HL Board 03 SCM 193197
|
120 2,8-3,6 2.2 94 22 2x12 12 F HL Board 03 Altendorf, Martin 193198
|
125 2,8-3,6 2.2 99 20 2x12 12 F HL Board 03 HOLZ-HER, SCM 193199
|
125 2,8-3,6 2.2 99 22 2x12 12 F HL Board 03 Altendorf, Martin 193200
|
