Panel Sizing Saw Blades HW - U-Cut speed "TR-F"

Product

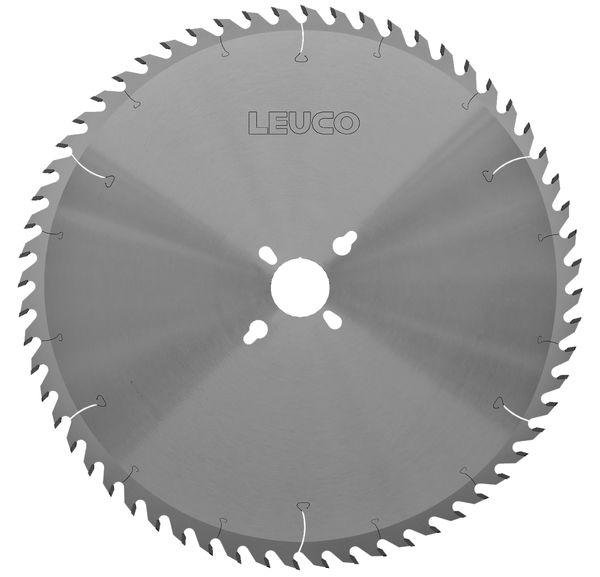

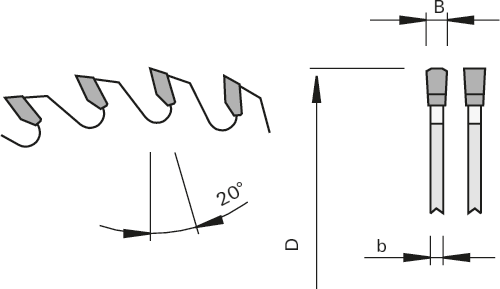

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • horizontal panel sizing saws
  • for stack cuts in raw and plastic-laminated panels

Design

  • vibration and noise damping ornaments
  • additional expansion slots
  • tooth configuration: triple chip / flat "TR-F"
  • cutting material: HW HL Board 04 plus

Advantages

  • for highest performance demands
  • reduced cutting pressure and power consumption thanks to optimized cutting geometry
  • extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations
  • clearly increased edge life thanks to improved HW grade

Notes

  • stack height: Ident-No. 192629 up to max. 190 mm / Ident-No. 192631 up to max. 210 mm / Ident-No. 192633 up to max. 215 mm
  • recommended projection: 20-30 mm
  • NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z NL Hook angle
[°]
Tooth geometry LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

520 4,8 3.5 60 60 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 20 TR-F HL Board 04 plus Homag (Holzma) Typ 23 192617
|
530 5,0 3.5 30 60 20 TR-F HL Board 04 plus Schelling 192618
|
530 5,8 4 60 60 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 20 TR-F HL Board 04 plus 192619
|
565 4,8 3.5 80 60 2/8/110 20 TR-F HL Board 04 plus 192620
|
565 5,0 3.5 100 60 20 TR-F HL Board 04 plus Giben 192621
|
570 4,8 3.5 60 60 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 20 TR-F HL Board 04 plus Homag (Holzma) 192622
|
575 5,8 4 60 60 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 20 TR-F HL Board 04 plus Homag (Holzma) 192664
|
600 5,8 4 60 60 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 20 TR-F HL Board 04 plus Homag (Holzma) Typ 42 192624
|
600 5,8 4 80 60 2/11/115 + 2/19/120 20 TR-F HL Board 04 plus 192625
|
620 6,2 4 80 60 4/15/143 20 TR-F HL Board 04 plus 192626
|
650 6,2 4 40 60 20 TR-F HL Board 04 plus Schelling 192627
|
670 6,0 4.4 60 48 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 20 TR-F HL Board 04 plus Homag (Holzma) 66 (Tandem) 192628
|
680 6,4 4.4 40 60 2/17/140 + 2/13/140 20 TR-F HL Board 04 plus Schelling 192629
|
700 6,4 4.4 80 60 2/17/110 20 TR-F HL Board 04 plus Anthon 192631
|
700 6,8 4.4 80 60 2/17/110 20 TR-F HL Board 04 plus 192632
|
720 6,4 4.4 40 60 2/13/114 + 2/13/140 20 TR-F HL Board 04 plus Schelling 192633
|
730 6,4 4.4 60 60 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 20 TR-F HL Board 04 plus Homag (Holzma) 66 (Tandem) 192635
|
730 6,4 4.4 80 60 2/17/110 20 TR-F HL Board 04 plus Anthon LNC 192634
|
750 6,5 4.6 40 72 2/13/140 + 2/13/114 20 TR-F HL Board 04 plus 192636
|
