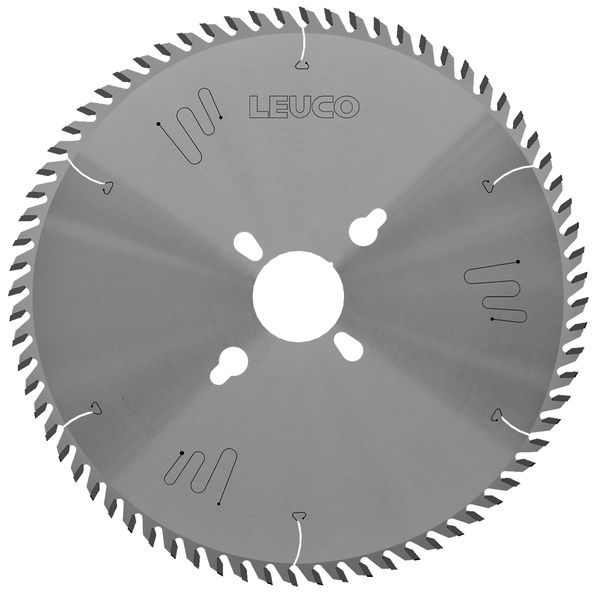

Panel Sizing Saw Blades HW - U-Cut max "TR-F"

Product

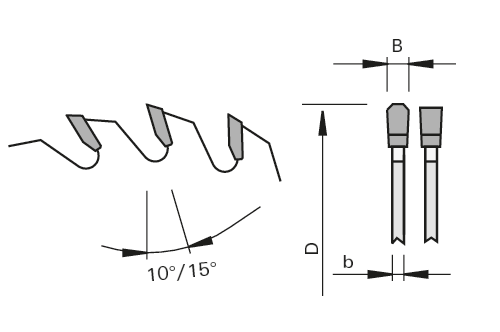

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • panel sizing saws
  • for sizing cuts in plastic-laminated panels

Design

  • up to ØD=360, 10 degree hook angle
  • from ØD=380, 15 degree hook angle
  • tooth configuration: triple chip / flat "TR-F"
  • cutting material: HW HL Board 04 plus

Advantages

  • higher edge life thanks to up to 6 times more resharpenings than U-Cut TR-F
  • noise reduction thanks to laser ornaments

Notes

  • specifically for plastic-laminated panels and plywood in single sheets and stacks
  • NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42
  • NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z NL Hook angle
[°]
Tooth geometry LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

350 4,4 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 10 TR-F HL Board 04 plus SCM, Panhans, Mayer, Schelling, HOLZ-HER 193120
|
350 4,4 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 10 TR-F HL Board 04 plus Homag (Holzma) 72, HPP 350 193121
|
350 4,4 3.2 75 72 10 TR-F HL Board 04 plus Giben MK Gamma 193122
|
380 4,4 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F HL Board 04 plus Homag (Holzma) 193123
|
380 4,8 3.5 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F HL Board 04 plus Homag (Holzma) 193124
|
380 4,4 3.2 80 72 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 15 TR-F HL Board 04 plus Gabbiani, SCM, Selco 193125
|
380 4,8 3.5 80 72 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 15 TR-F HL Board 04 plus Gabbiani, SCM, Selco 193126
|
400 4,4 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 15 TR-F HL Board 04 plus Schelling Mayer, Irion, Scheer, HOLZ-HER 193127
|
450 4,4 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 15 TR-F HL Board 04 plus Irion, Schelling 193128
|
450 4,8 3.5 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F HL Board 04 plus Homag (Holzma) 193129
|
470 4,8 3.5 70 72 2/11/130 15 TR-F HL Board 04 plus Selco WN 193132
|
470 4,4 3.2 75 72 4/15/105 + 2/19/120 15 TR-F HL Board 04 plus Giben 193130
|
470 4,8 3.5 75 72 4/15/105 + 2/7/110 15 TR-F HL Board 04 plus Giben 193131
|
500 4,4 3.2 30 60 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 15 TR-F HL Board 04 plus Schelling, Irion 192940
|
500 4,8 3.5 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F HL Board 04 plus Homag (Holzma) Typ 22 192941
|
520 4,8 3.5 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 15 TR-F HL Board 04 plus Schelling FH 8 192942
|
520 4,8 3.5 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F HL Board 04 plus Homag (Holzma) Typ 23 192943
|
560 4,8 3.5 30 72 2/13/94 15 TR-F HL Board 04 plus Schelling 193104
|
600 5,8 4 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F HL Board 04 plus Homag (Holzma) Typ 42 192944
|
650 6,2 4 40 72 15 TR-F HL Board 04 plus Schelling 192945
|
