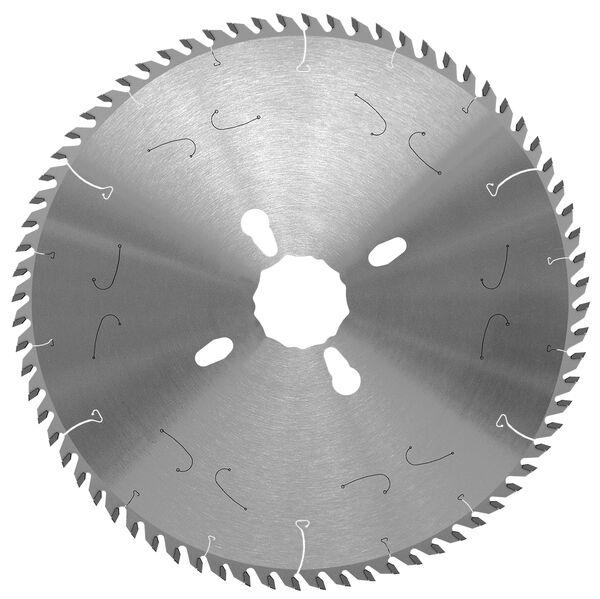

Panel Sizing Saw Blades HW - Q-Cut "G6" Edition - easyFix
Product
Drawing
-
-
- Tungsten Carbide [HW]
-
Article
Description
Machine / Application
- horizontal panel sizing saws
- for finish cuts in veneered, foiled or melamine-laminated panels, in single sheets or in stacks
Design
- tooth configuration: G6
- cutting material: HW HL Board 04 plus
Advantages
- easyFix: NEW, EASY HANDLING: easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
- for highest performance demands
- impressive cutting quality thanks to exact and precise cuts
- due to several improvements, they have longer edge lives that the standard Q-Cut "G6"
Notes
- projection: min. 20 - 25 mm max. 40 mm
- NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 350 | 4,4 | 3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | Homag (Holzma) 72, HPP 350 | 193321 | ||
| 360 | 4,4 | 3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Schelling | 193322 | ||
| 380 | 4,4 | 3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193323 | ||
| 380 | 4,8 | 3.3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193324 | ||
| 450 | 4,8 | 3.3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193325 | ||
