Panel Sizing Saw Blades DP - Q-Cut "G6"

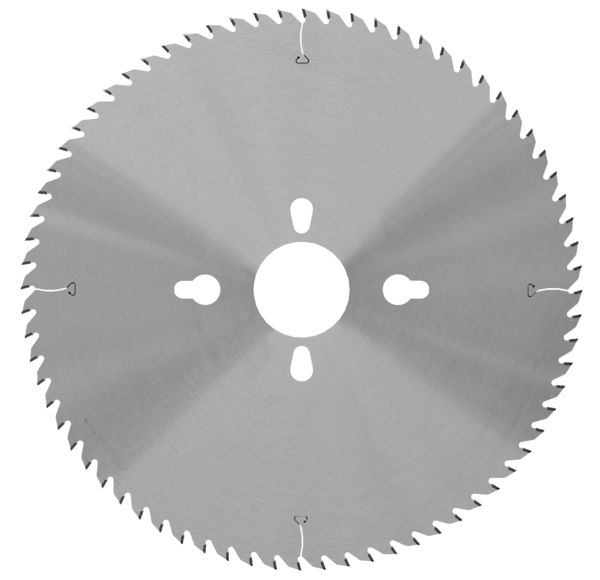

Product

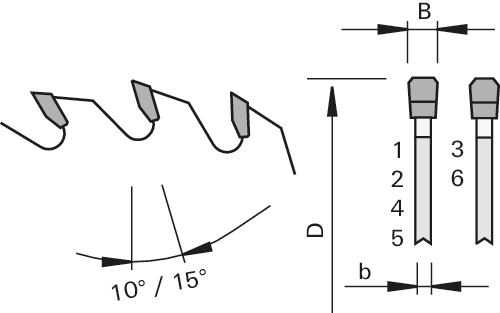

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • horizontal panel sizing saws
  • for finish cuts in raw and plastic-laminated panels

Design

  • vibration-optimized tool body design
  • LEUCODIA tipping quality
  • G6: for finish cuts in unfinished and plastic-coated composite wood boards individually or in packages up to 80 mm

Advantages

  • extremely good vibration damping due to laser ornaments filled with damping material

Notes

  • NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

300 4,4 3.2 30 72 10 G6 193409
|
300 4,4 3.2 30 72 2/10/60 + 2/13 /94 10 G6 Panhans, Mayer, SCM, Schelling 80487406
|
300 4,4 3.2 60 72 2/14/110 10 G6 HOMAG 80487408
|
300 4,4 3.2 65 72 2/9/100 + 2/9/110 10 G6 Selco 80487409
|
300 4,4 3.2 75 72 2/9/11 10 G6 HOMAG 80487410
|
300 4,4 3.2 80 72 2/14/110 10 G6 SCM-Gabbiani 80487411
|
320 4,4 3.2 30 72 10 G6 193410
|
320 4,4 3.2 50 72 3/15/80 10 G6 Giben 80487412
|
320 4,4 3.2 60 72 2/14/100 10 G6 HOMAG Sawtech B 200 80487413
|
320 4,4 3.2 65 72 2/9/100 + 2/9/110 10 G6 Selco 80487414
|
320 4,4 3.2 75 72 10 G6 Giben 80487415
|
320 4,4 3.2 80 72 2/14/110 10 G6 SCM-Gabbiani 80487416
|
350 4,4 3.2 30 72 10 G6 193412
|
350 4,4 3.2 50 72 4/13/80 10 G6 Giben 80487418
|
350 4,4 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 10 G6 HOMAG 193411
|
350 4,4 3.2 60 72 2/10/60 + 2/13/94 10 G6 Panhans, Mayer, SCM, Scheer 80487417
|
350 4,4 3.2 65 72 2/9/110 10 G6 Selco 80487419
|
350 4,4 3.2 75 72 4/15/105 + 2/7/110 10 G6 Giben 80487420
|
350 4,4 3.2 80 72 2/14/110 10 G6 SCM-Gabbiani 80487421
|
380 4,4 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 10 G6 HOMAG 193413
|
400 4,4 3.2 30 72 10 G6 193414
|
400 4,4 3.2 30 72 2/10/60 + 2/13/94 10 G6 Panhans, Mayer, SCM, Scheer 80487422
|
400 4,4 3.2 65 72 2/9/110 10 G6 Selco 80487423
|
400 4,4 3.2 75 72 4/15/105 + 2/7/110 10 G6 Giben, KDT 80487424
|
400 4,4 3.2 80 72 2/14/110 10 G6 SCM-Gabbiani 80487425
|
400 4,4 3.2 80 72 2/9/130 + 4/19/120 10 G6 Selco 80487426
|
430 4,4 3.2 30 72 10 G6 193415
|
430 4,4 3.2 30 72 2/10/60 10 G6 Schelling 80487427
|
430 4,4 3.2 65 72 2/9/10 10 G6 Selco 80487428
|
430 4,4 3.2 70 72 4/11/130 10 G6 Selco 80487429
|
430 4,4 3.2 75 72 4/15/105 + 2/7/110 10 G6 Selco 80487430
|
430 4,4 3.2 80 72 2/14/110 10 G6 SCM-Gabbiani 80487431
|
450 4,8 3.5 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 10 G6 HOMAG 193416
|
