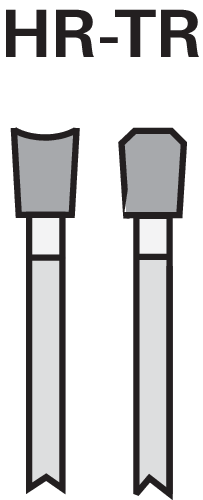

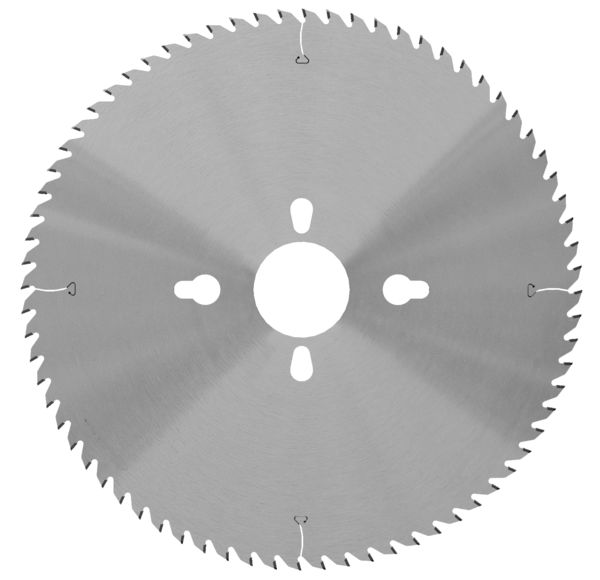

Panel Sizing Saw Blades DP "HR-TR" - topcoat

Product

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • horizontal panel sizing saws
  • for finish cuts in HPL and solid core materials

Design

  • vibration-optimized tool body design
  • LEUCODIA tipping quality
  • LEUCO topcoat: smooth surfaces for the reduction of deposits and adhesions on the cutting edges

Advantages

  • extremely good vibration damping due to laser ornaments filled with damping material
  • increased edge lives thanks to topcoat coating

Notes

  • NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

350 4,4 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 HR-TR Homag (Holzma) 72, HPP 350 193046
|
