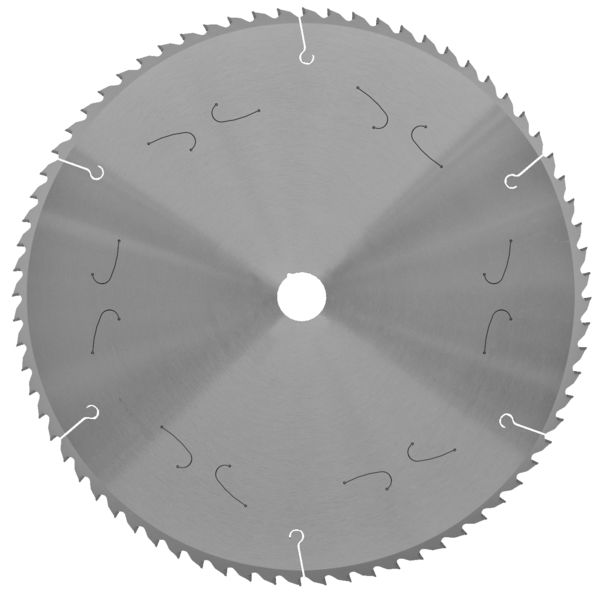

DIAREX Panel Sizing Saw Blades DP "HR-FA"

Product

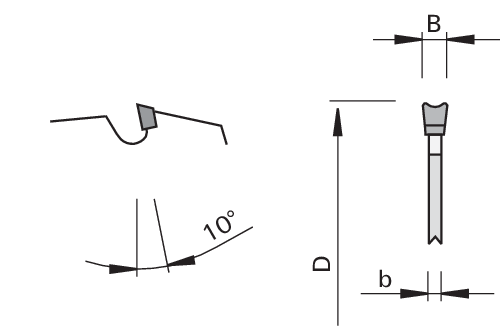

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • horizontal panel sizing saws
  • well suited for magnet bond boards
  • very well suited for thin plates made of CFRP and GFRP

Design

  • tooth configuration: hollow back with chamfer  "HR-FA"
  • cutting material: DP
  • resharpenable area 2.0 mm

Advantages

  • excellent cut quality thanks to pre-scoring effect and reduced cutting pressure

Notes

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z Hook angle
[°]
Tooth geometry Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

350 4,4 3.2 30 72 10 HR-FA 193222
|
