Pre-Cut Gang-Rip Saw Blades HW with HW-rakers "F" - Linck

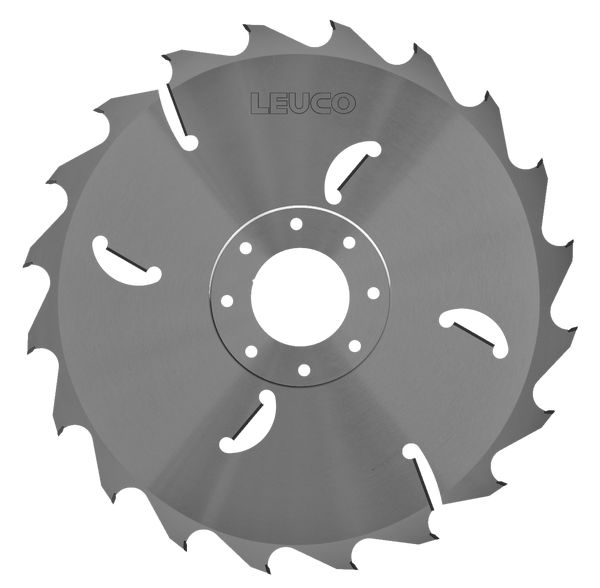

Product

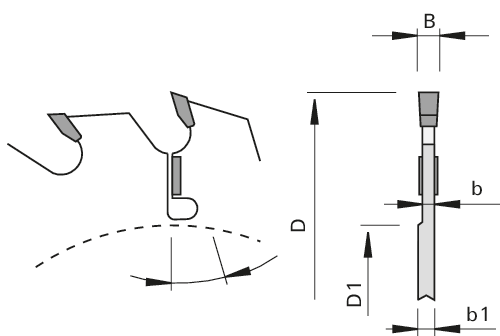

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • primary machines with and without chippers
  • for longitudinal cuts in wet and dry soft woods

Design

  • tooth configuration: flat "F"
  • cutting material: HW HL Board 20
  • type A and C with staggered double keyways

Advantages

  • extremely high bending strength and hardness of the teeth
  • tungsten carbide rakers prevent the sides of the wood from making contact with the steel plate
  • staggering the types (A-C-A etc.) on the shaft creates a cut division that puts less pressure on the machine

Notes

  • the saw blade is optimized according to the LEUCO company standards as well as according to the customers specifications and machine parameters after consultation with the technical engineering
  • Ident-No. is only for orientation

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		b1
[mm] 		Ø D1
[mm] 		Ø d
[mm] 		Z Number of rakers
[pc.] 		DKN
[mm] 		NL Hook angle
[°] 		L/R Tooth geometry LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

445 4,8 3.2 6.8 190 120 28 4 4/13/156 20 L F HL Board 20 Linck VS 80250724
|
445 4,8 3.2 6.8 190 120 28 4 4/13/156 20 R F HL Board 20 Linck VS 80250723
|
470 5,0 3.6 6.8 190 120 28 6 8/13/156 20 L F HL Board 20 Linck VS 80290358
|
470 5,0 3.6 6.8 190 120 28 6 8/13/156 20 R F HL Board 20 Linck VS 80290357
|
505 5,6 3.8 6.8 190 120 28 4 8/14,5/156 25 L F HL Board 20 Linck VS 80281372
|
505 5,6 3.8 6.8 190 120 28 4 8/14,5/156 25 R F HL Board 20 Linck VS 80281373
|
520 5,0 3.2 110 32 6 12/13/140 25 N F HL Board 20 Linck VS 80269113
|
525 5,6 4 6.8 190 120 24 6 6/13/156 25 L F HL Board 20 Linck VS 80307585
|
525 5,6 4 6.8 190 120 24 6 6/13/156 25 R F HL Board 20 Linck VS 80307584
|
525 4,8 3.2 6.8 240 160 28 6 6/12/210 25 L F HL Board 20 Linck VS 80279581
|
525 4,8 3.2 6.8 240 160 28 6 6/12/210 25 R F HL Board 20 Linck VS 80279579
|
540 4,2 2.8 5.1 235 145 24 6 20x7 8/12,5/165 25 L F HL Board 20 Linck CSMK 285 80245193
|
540 4,2 2.8 5.1 235 145 24 6 20x7 8/12,5/165 25 R F HL Board 20 Linck CSMK 285 80245192
|
540 5,0 3.4 6.8 205 150 24 6 8/12/180 30 L F HL Board 20 Linck CSMK 285 80268479
|
540 5,0 3.4 6.8 205 150 24 6 8/12/180 30 R F HL Board 20 Linck CSMK 285 80268478
|
540 4,8 3.2 6.8 190 150 28 6 8/11/180 22 L F HL Board 20 Linck CSMK 285 80283376
|
540 4,8 3.2 6.8 205 150 28 6 8/11/180 22 R F HL Board 20 Linck CSMK 285 80283375
|
540 5,2 3.4 6.8 205 150 28 6 8/12/180 22 L F HL Board 20 Linck CSMK 285 80333677
|
540 5,2 3.4 6.8 205 150 28 6 8/12/180 22 R F HL Board 20 Linck CSMK 285 80333678
|
550 5,2 3.5 120 24 6 8/18/155 22 L F HL Board 20 Linck VS 80254383
|
550 5,2 3.5 120 24 6 8/18/155 22 R F HL Board 20 Linck VS 80254381
|
580 5,0 3.2 5.2 250 145 32 6 20x5 8/12/165 22 L F HL Solid 15 Linck CSMK 325 80333690
|
580 5,0 3.2 5.2 250 145 32 6 20x5 8/12/165 22 R F HL Solid 15 Linck CSMK 325 80333692
|
648 5,6 3.8 6.8 210 160 24 8 8/11/185 22 L F HL Board 20 Linck CSMK 375 80250585
|
648 5,6 3.8 6.8 210 160 24 8 8/11/185 22 R F HL Board 20 Linck CSMK 375 80250584
|
695 5,0 3.4 6.8 350 170 50 8 20x5 12/12/195 20 L F HL Board 20 Linck CSMK 425 80258266
|
695 5,0 3.4 6.8 350 170 50 8 20x5 12/12/195 20 R F HL Board 20 Linck CSMK 425 80258264
|
