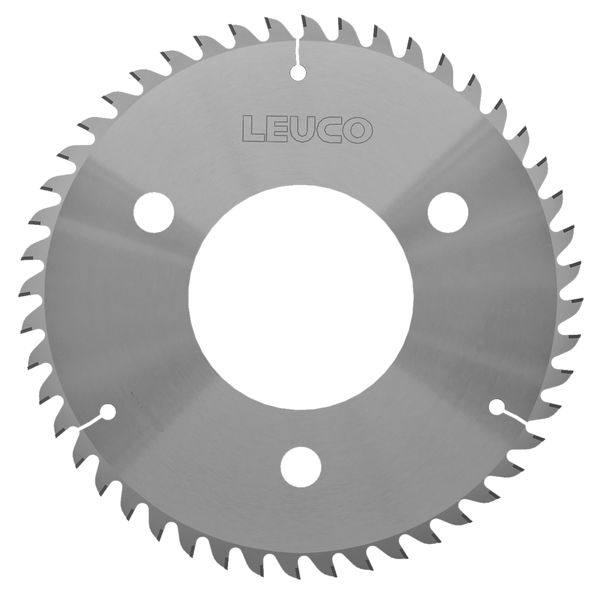

Gang-Rip Saw Blades DP "F-FA" - nn-System

Product

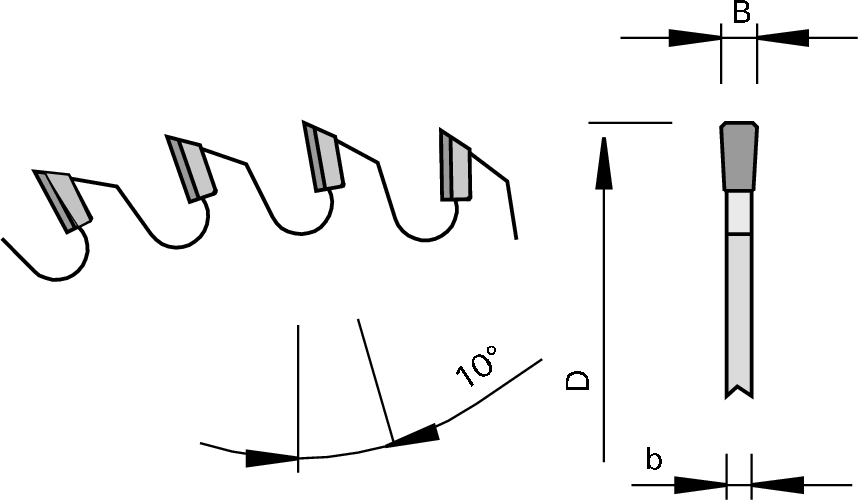

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • gang-rip machines Paul, Homag
  • for trimming cuts in raw and laminated panels and composite materials

Design

  • tooth configuration: flat with chamfer "F-FA"

Advantages

  • especially low noise level

Notes

  • for saw blade Ø d=110 mm please use hydro bushing Ident-No. 183829 / 183821

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Tooth geometry Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

250 2,4 1.6 100 48 3/18/150 F-FA Paul, Homag 193337
|
250 1,8 1.2 100 48 3/18/150 F-FA Paul, Homag 193339
|
250 2,4 1.6 110 48 8/8,5/130 F-FA Paul, Homag 193336
|
250 1,8 1.2 110 48 8/8,5/130 F-FA Paul, Homag 193338
|
