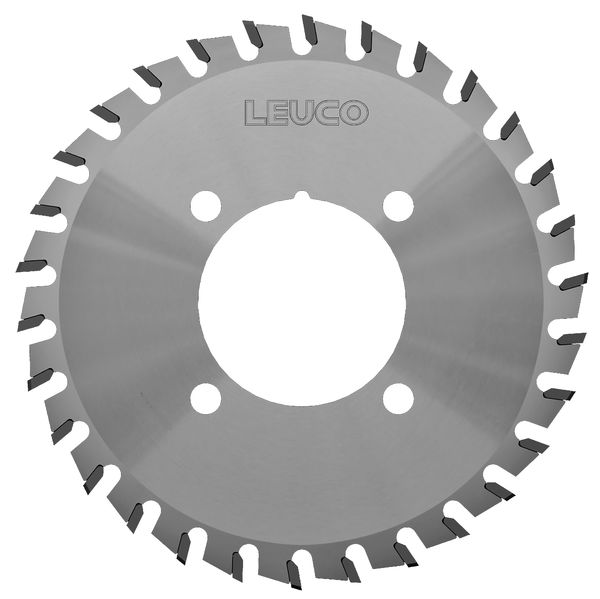

192504 - Clipping Saw Blades HW for edge trimming "TR-F" - nn-System
Product

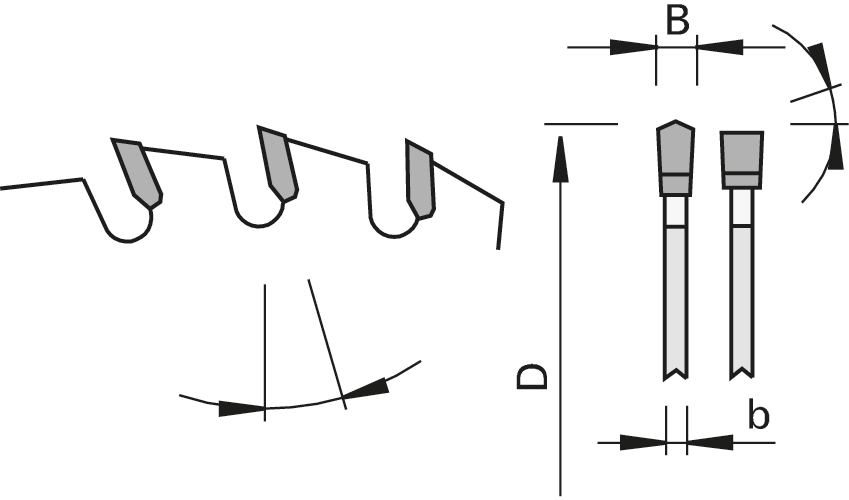

Drawing
-
-
- Tungsten Carbide [HW]
-
Technical data
Description
Machine / Application
- edge banders
- edge trimming machines
- for trimming of plastic-, veneer- and solid wood edges
Design
- special NoNoise gullet geometry
- without shear angle
- positive hook angle
- tooth configuration: triple chip / flat "TR-F"
- cutting material: HW HL Board 06, HL Board 04 plus
Advantages
- especially low noise level
- noise reduction by approx. 6 dB(A) when idling
Notes
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 110 [mm] | |
| B = Cutting width | 1,7 [mm] | |
| b = Body thickness | 1.2 [mm] | |
| Ø d = Bore diameter | 40 [mm] | |
| Z = No. of teeth | 30 | |
| NL = Pin holes | 4/6/52 | |
| Hook angle = Hook angle | 10 [°] | |
| Corner∡ = Corner angle | 45 [°] | |
| Tooth geometry = Tooth configuration | TR-F | |
| LEUCODUR = Cutting material | HL Board 06 | |
| L = Delivery Status | ||
| Machine/Type | Homag BAZ | |
|
Dimensions entered are not listed?
available from stock |
||
