189837 - Clipping Saw Blades HW for wood optimization "WSA"

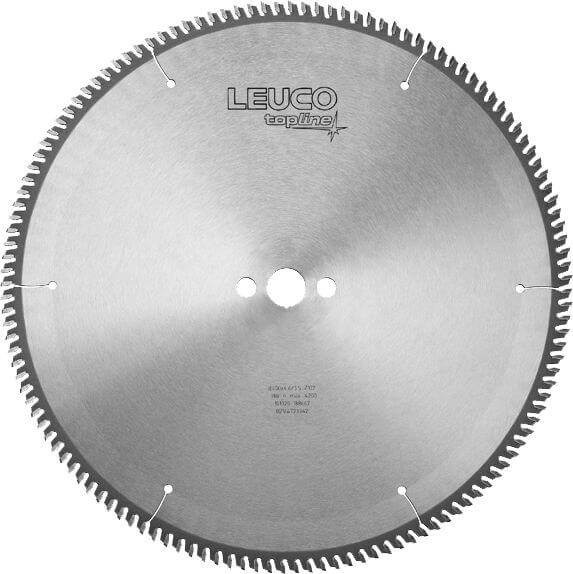

Product

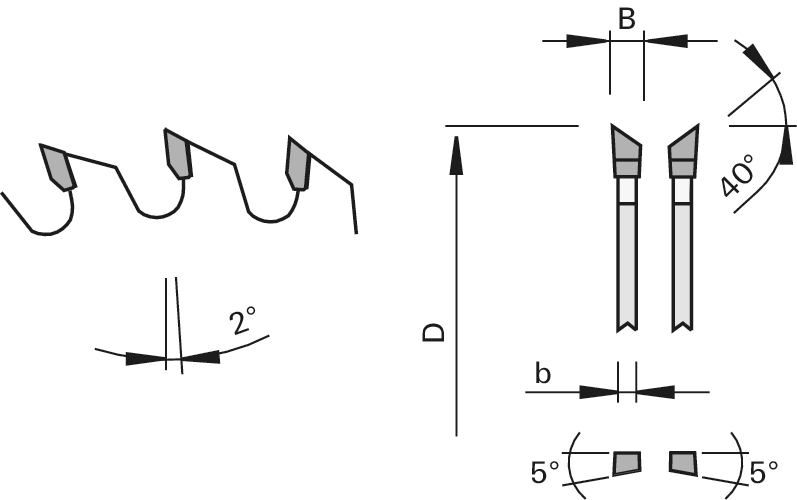

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- optimizing chop saws
- undertable cross-cut saws
- push-feed saws
- through-feed saws
- for cross cuts in solid woods
Design
- positive hook angle
- tooth configuration: alternate top bevel with shear angle "WSA"
- cutting material: HW HL Board 06
- extremely high bending strength and hardness of the teeth
Advantages
- reduced cutting pressure thanks to alternating shear angle
- long edge lives provide for the necessary productivity and economic efficiency
Notes
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 550 [mm] | |
| B = Cutting width | 4,6 [mm] | |
| b = Body thickness | 3.5 [mm] | |
| Ø d = Bore diameter | 120 [mm] | |
| Z = No. of teeth | 156 | |
| NL = Pin holes | 6/10,2/240 | |
| Hook angle = Hook angle | 2 [°] | |
| Corner∡ = Corner angle | 40 [°] | |
| Shear∡ = Shear angle | 5 [°] | |
| Tooth geometry = Tooth configuration | WSA | |
| LEUCODUR = Cutting material | HL Board 06 | |
| L = Delivery Status | ||
| Machine/Type | Paul | |
|
Dimensions entered are not listed?
available from stock |
||
