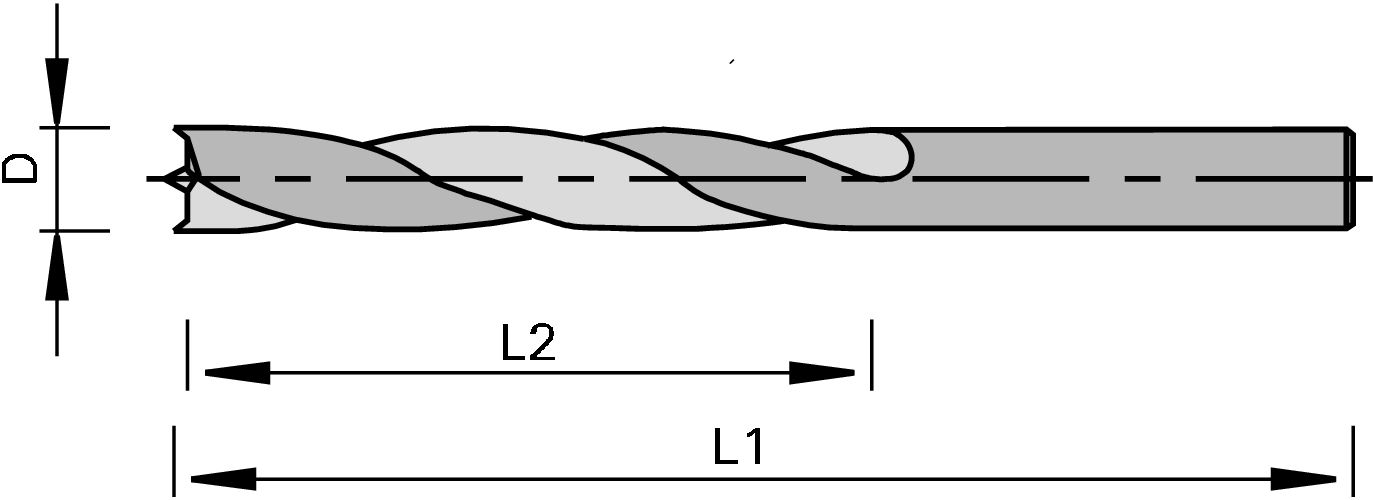

Twist Drills HS - joinery machines

	Ø D [mm]	L2 [mm]	Ø d [mm]	L3 [mm]	L1 [mm]	Z	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	3	200	3,0	50	250	2	R	80484123	\|
	4	200	4,0	50	250	2	R	80484124	\|
	5	200	5,0	50	250	2	R	80484125	\|
	6	200	6,0	50	250	2	R	80484126	\|
	7	200	7,0	50	250	2	R	80484127	\|
	8	200	8,0	50	250	2	R	80484128	\|
	9	200	9,0	50	250	2	R	80484129	\|
	10	200	10	50	250	2	R	80484130	\|
	11	200	11	50	250	2	R	80484131	\|
	12	200	12	50	250	2	R	80484132	\|
	13	200	13	50	250	2	R	80484133	\|
	14	200	13	50	250	2	R	80484134	\|
	15	200	13	50	250	2	R	80484135	\|
	16	200	13	50	250	2	R	80484136	\|
	18	200	13	50	250	2	R	80484137	\|
	20	200	13	50	250	2	R	80484138	\|
	22	200	13	50	250	2	R	80484139	\|
	24	200	13	50	250	2	R	80484140	\|
	25	200	13	50	250	2	R	80484141	\|
	3	250	3,0	65	315	2	R	80484142	\|
	4	250	4,0	65	315	2	R	80484143	\|
	5	250	5,0	65	315	2	R	80484144	\|
	6	250	6,0	65	315	2	R	80484145	\|
	7	250	7,0	65	315	2	R	80484146	\|
	8	250	8,0	65	315	2	R	80484147	\|
	9	250	9,0	65	315	2	R	80484148	\|
	10	250	10	65	315	2	R	80484149	\|
	11	250	11	65	315	2	R	80484150	\|
	12	250	12	65	315	2	R	80484151	\|
	13	250	13	65	315	2	R	80484152	\|
	14	250	13	65	315	2	R	80484153	\|
	15	250	13	65	315	2	R	80484154	\|
	16	250	13	65	315	2	R	80484155	\|
	3	380	3,0	80	460	2	R	80484156	\|
	4	380	4,0	80	460	2	R	80484157	\|
	5	380	5,0	80	460	2	R	80484158	\|
	6	380	6,0	80	460	2	R	80484159	\|
	7	380	7,0	80	460	2	R	80484160	\|
	8	380	8,0	80	460	2	R	80484161	\|
	9	380	9,0	80	460	2	R	80484162	\|
	10	380	10	80	460	2	R	80484163	\|
	11	380	11	80	460	2	R	80484164	\|
	12	380	12	80	460	2	R	80484165	\|
	13	380	13	80	460	2	R	80484166	\|
	14	380	13	80	460	2	R	80484167	\|
	15	380	13	80	460	2	R	80484168	\|
	16	380	13	80	460	2	R	80484169	\|
