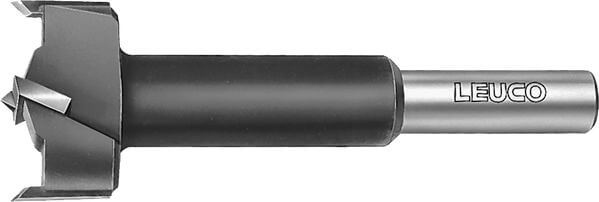

Cylinder Boring Bits HW - portable boring machines

Product

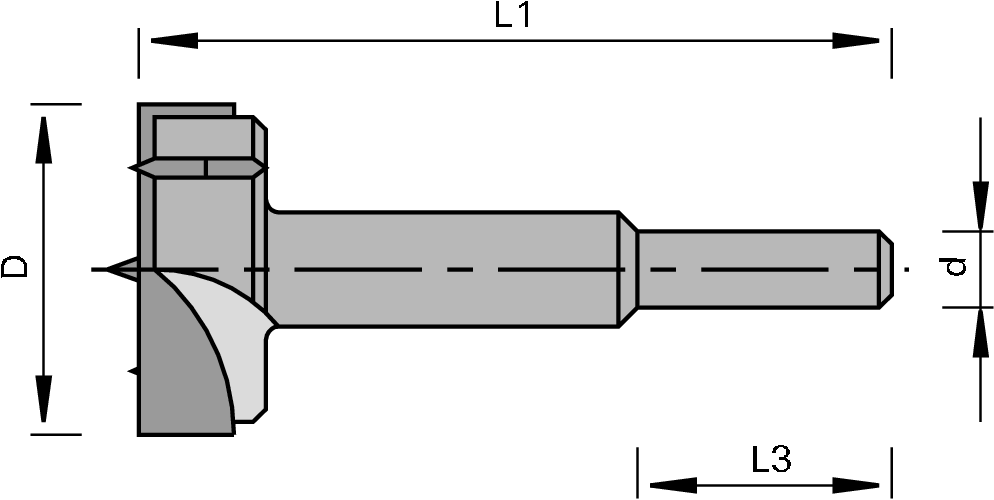

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • portable boring machines
  • for chip-free drilling in solid woods and wood-based panels

Design

  • 2 rakers, 2 spurs and centering point
  • HW-tipped
  • Ø 12: spurs in rakers
  • cylindrical shank

Advantages

  • chip-free holes thanks to scoring cut of the spurs

Notes

  • diameter of the cylindrical shank is adapted to the cutting pressure
  • clamping elements: drill chuck

Table- and picture caption ...

Ø D
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

12 10 30 90 2+2 R 173204
|
14 10 30 90 2+2 R 167685
|
15 10 30 90 2+2 R 160424
|
16 10 30 90 2+2 R 160425
|
17 10 30 90 2+2 R 167686
|
18 10 30 90 2+2 R 160426
|
19 10 30 90 2+2 R 167687
|
20 10 30 90 2+2 R 160427
|
21 10 30 90 2+2 R 173205
|
22 10 30 90 2+2 R 160428
|
23 10 30 90 2+2 R 167688
|
24 10 30 90 2+2 R 160429
|
25 10 30 90 2+2 R 160430
|
26 10 30 90 2+2 R 160431
|
27 10 30 90 2+2 R 173206
|
28 10 30 90 2+2 R 160432
|
30 10 30 90 2+2 R 160433
|
32 10 30 90 2+2 R 160434
|
34 10 30 90 2+2 R 167689
|
35 10 30 90 2+2 R 160435
|
36 10 30 90 2+2 R 160436
|
38 10 30 90 2+2 R 160437
|
40 10 30 90 2+2 R 160438
|
42 10 30 90 2+2 R 167690
|
45 10 30 90 2+2 R 173207
|
50 10 30 90 2+2 R 173208
|
15 13 50 140 2+2 R 173210
|
16 13 50 140 2+2 R 173211
|
18 13 50 140 2+2 R 160388
|
20 13 50 140 2+2 R 160389
|
22 13 50 140 2+2 R 160390
|
24 13 50 140 2+2 R 173212
|
25 13 50 140 2+2 R 160392
|
26 13 50 140 2+2 R 160393
|
28 13 50 140 2+2 R 160394
|
30 13 50 140 2+2 R 160395
|
32 13 50 140 2+2 R 160396
|
34 16 50 140 2+2 R 173213
|
35 16 50 140 2+2 R 160398
|
38 16 50 140 2+2 R 173215
|
40 16 50 140 2+2 R 160401
|
42 16 50 140 2+2 R 160402
|
44 16 50 140 2+2 R 173216
|
45 16 50 140 2+2 R 180742
|
46 16 50 140 2+2 R 173217
|
48 16 50 140 2+2 R 173218
|
50 16 50 140 2+2 R 160407
|
52 16 50 140 2+2 R 160408
|
54 16 50 140 2+2 R 173219
|
55 16 50 140 2+2 R 160409
|
56 16 50 140 2+2 R 173220
|
58 16 50 140 2+2 R 173221
|
60 16 50 140 2+2 R 160410
|
63 16 50 140 2+2 R 173228
|
65 16 50 140 2+2 R 160411
|
68 16 50 140 2+2 R 173222
|
70 16 50 140 2+2 R 160412
|
75 20 50 140 2+2 R 173223
|
80 20 50 140 2+2 R 160414
|
