Cylinder Boring Bits DP

Product

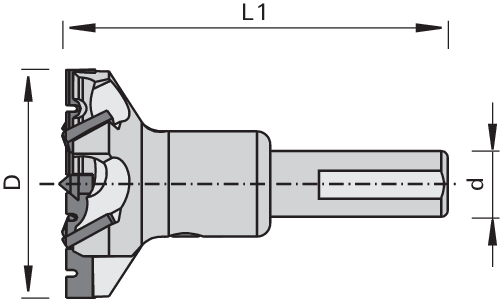

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • automatic boring machines
  • CNC machining centers
  • for chip-free drilling in raw and laminated panels

Design

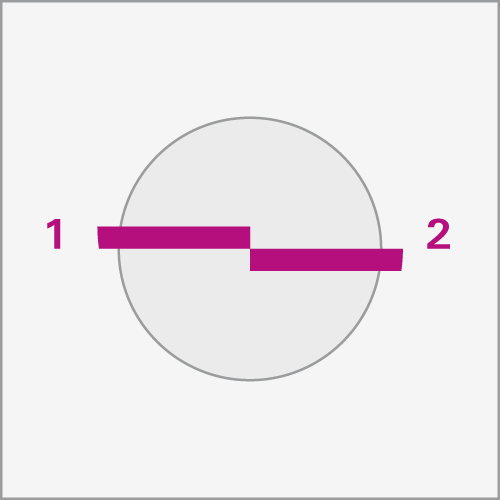

  • 2 DP rakers with chip breakers
  • 4 DP spurs
  • HW centering point
  • Multiple resharpening

Advantages

  • Long edge life when machining abrasive materials
  • Economic efficiency thanks to possibility of multiple resharpening
  • Clean holes with no tear out thanks to the special geometry of the 4 spurs
  • Centering point for safe spot drilling

Notes

  • cylindrical shank with clamping surface
  • adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
  • adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
  • clamping elements: combi chuck, quick-clamping chuck

Table- and picture caption ...

Ø D
[mm] 		Ø d
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

35 10 57.5 2+4 R 186782
|
35 10 70 2+4 R 186783
|
