Selection via tool type

Boring Countersink HW

Product

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • portable boring machines
  • automatic boring machines
  • for drilling and countersinking in solid woods and wood-based panels

Design

  • spiral PTFE coated
  • 2 spurs
  • centering point

Advantages

  • for drilling and countersinking in one pass
  • safe drilling thanks to centering point

Notes

  • adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
  • adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
  • clamping elements: combi chuck, quick-clamping chuck

Table- and picture caption ...

Ø D
[mm] 		L2

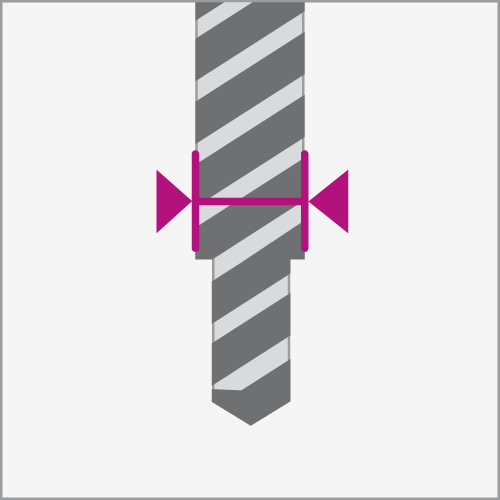

[mm] 		Ø D1

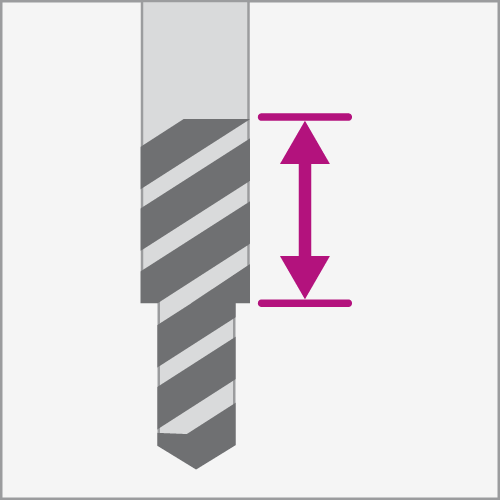

[mm] 		L4
[mm] 		Ø d
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

8 12 16 15 10 57.5 2+2 L 180847
|
8 12 16 15 10 57.5 2+2 R 180846
|
8 15 16 15 10 57.5 2+2 L 180849
|
8 15 16 15 10 57.5 2+2 R 180848
|
10 12 16 15 10 57.5 2+2 L 180853
|
10 12 16 15 10 57.5 2+2 R 180852
|
10 15 16 15 10 57.5 2+2 L 180855
|
10 15 16 15 10 57.5 2+2 R 180854
|
8 12 16 15 10 70 2+2 L 180859
|
8 12 16 15 10 70 2+2 R 180858
|
8 15 16 15 10 70 2+2 L 180861
|
8 15 16 15 10 70 2+2 R 180860
|
8 20 16 15 10 70 2+2 L 180863
|
8 20 16 15 10 70 2+2 R 180862
|
10 12 16 15 10 70 2+2 L 180865
|
10 12 16 15 10 70 2+2 R 180864
|
10 15 16 15 10 70 2+2 L 180867
|
10 15 16 15 10 70 2+2 R 180866
|
10 20 16 15 10 70 2+2 L 180869
|
10 20 16 15 10 70 2+2 R 180868
|
