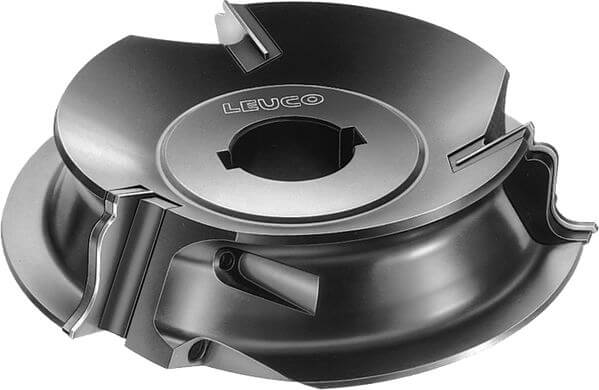

SuperProfiler HW (outside profile) - MEC

Product

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • double end tenoners
  • molders
  • for profiling of solid woods and wood-based panels

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 06 for hard woods and wood-based panels
  • cutting material: HW HL Solid 60 for soft woods

Advantages

  • cutterhead for mounting of several profile knives

Notes

  • profile knife can be profiled per customer specifications
  • included in delivery: cutterhead with clamping elements, without profile knives and support plates
  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm]
B
[mm]
Ø d
[mm]
Ø dmax
[mm]
Z Tmax
[mm]
DKN
[mm]
Crank∡
[°]
Drawing
[Foil]
nmax
[min-1]
L/R Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

165 40 30 40 3 13 8x3 30 SP 13 9,000 L Homag, IMA 167967
|
165 40 30 40 3 13 8x3 30 SP 13 9,000 R Homag, IMA 167968
|
