187062 - DIAMAX Edge Rounding-Chamfering Cutters CM DP - FK31 - Homag
Product
Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- Edge banding machine HOMAG with shaping unit FK30 or FK31
- for rounding and / or chamfering of front edge bands made of solid wood, veneer or plastic
Design

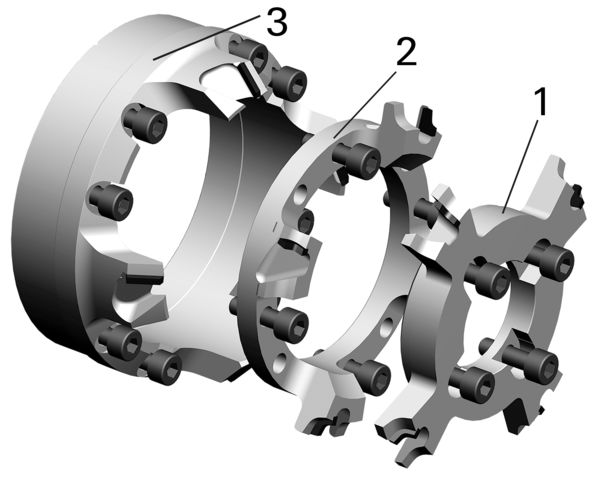

- 3 piece tool
- polished face
- precise clearance angle
- with shear angle
- runout angle 15°
- n max = 18,000 min-1
Advantages
- very short workpiece gaps of 400 mm at a max. part length of 600 mm
- Feed rates up to 35 m/min
- Combination of up to 3 different profiles without tool change
- Excellent cutting quality thanks to high concentric accuracy and smooth running
- Replacement of a whole set of individual profiles is possible
- Optimized chip removal thanks to ChipMeister version
Notes
- the profile of tool 1 must be larger than the profile of the tools 2 and 3. The biggest radius determines the maximum chamfer size of the moving chamfering tools 2 and 3.
- further profile combinations are available on short notice upon request
- it is possible to produce an additional chamfer profile using the runout angle
- constant reference diameter D1
- Tools are delivered with mounting screws
- sense of rotation according to VDMA 8849
- not intended for resharpening
| Feature | Value | |
|---|---|---|
| Chamfer∡ = Chamfer angle | 15 [°] | |
| Ø D = Cutting circle diameter | 92 [mm] | |
| Ø D1 = Basis cutting circle diameter | 80,1 [mm] | |
| a = Distance to machine | 43 [mm] | |
| b = Hub width | 44 [mm] | |
| Ø d = Bore diameter | 73 [mm] | |
| Z = No. of teeth | 4 | |
| nmax = maximum RPM | 18,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Spare parts / accessories
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
|
Head Cap Screws | M5x30 DIN EN ISO 4762 | 185496 | ||
|
available from stock |
|||||
