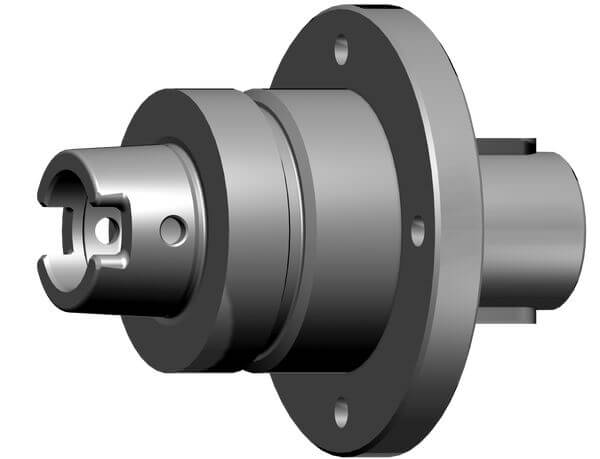

Mounting Arbors HSK 63F modified - 35 DKN, with lid and screws

Product

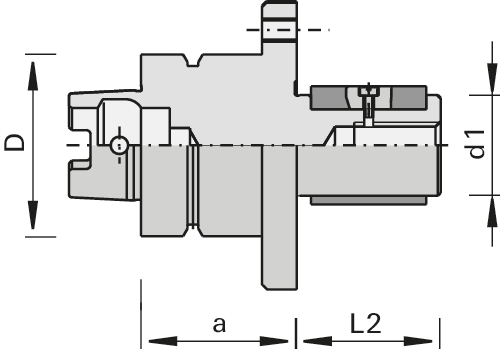

Drawing

Article

Description

Machine / Application

  • through-feed machines with tool changer Homag
  • for precise clamping of tools with bore

Design

  • with pulling grooves
  • flange with fastening screw thread
  • interface DIN 69893 HSK 63 F for highly precise mounting on the machine spindle

Advantages

  • quick tool change

Notes

  • for clockwise and counter-clockwise rotation

Table- and picture caption ...

Ø d1
[mm] 		L2
[mm] 		Ø d
[mm] 		Ø D
[mm] 		Norm number a
[mm] 		NL Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

35 40 HSK 63F 63 DIN 69893 54 4/M8/80 182689
|
35 50 HSK 63F 63 DIN 69893 54 8/M8/80 182124
|
