Draw-In Collet Chucks with HSK shank

interface according to DIN 69893 HSK 50F, HSK 63F, HSK 63E, HSK 80A, HSK 80C, HSK 80E, HSK 80F and HSK 100A
lock nut with sleeve bearing

for right- and lefthand rotation
Ident-No. 175795 for IMA (up to 12/94) similar to DIN 69893
Ø d1 = collet chuck diameter 2 - 25 mm and 3 - 30 mm
collet chucks according to DIN 6388: 1) type 462E/OZ25/ 2) type 472E/ER40
included in delivery: collet chuck, clamping nut without spanner wrench
attention: different interfaces in case of CMS machines, according to spindle performance (KW)

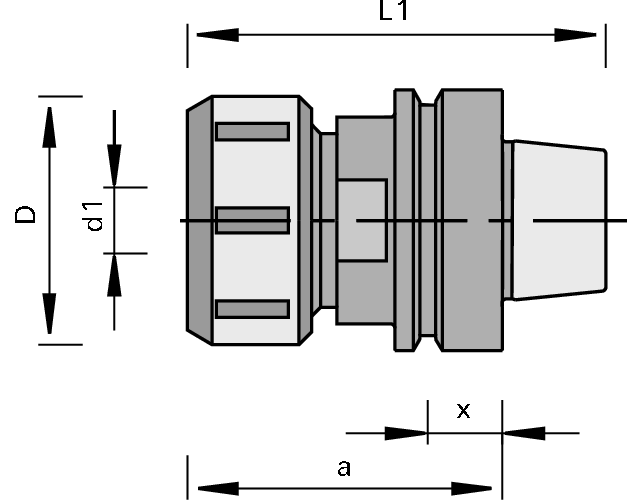

	Ø d1 [mm]	Ø d [mm]	Ø D [mm]	Norm number	L1 [mm]	a [mm]	x [mm]	Dimension [mm]	Type	Weight [kg]	Machine/Type	Remarks	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting. available from stock available on short notice Delivery time on request
	2-25	HSK 63F	60	DIN 69893	101	76	18	HSK 63Fx2-25	1	1.45	Homag, IMA from 01/95, Weeke from 03/98, HOLZ-HER, SCM, CMS (12+15 KW)	x=18mm	173293	\|
	2-25	HSK 63F	60	DIN 69893	101	76	9		1	1.192	IMA up to 12/94	x=9mm	175795	\|
	2-25	HSK 63F	60	DIN 69893	140	115	18		1		Homag, IMA from 01/95, Weeke from 03/98, HOLZ-HER, CMS (12+15 KW)	x=18 mm	179170	\|
	3-30	HSK 63F	63	DIN 69893	85	76	18		2	0.86	joinery machines by Weinmann	x=18 mm	80344855	\|
	3-30	HSK 63E	63	DIN 69893	103	78	18		2	1.45	CMS (18 KW), joinery machines by Hundegger	x=18 mm	180359	\|
	3-30	HSK 80A	80	DIN 69893	110	85	18		2	1.439	Joinery machines by Weinmann and Hundegger	x=18 mm	80480510	\|
	3-30	HSK 80C	80	DIN 69893	101	76	18		2	1.17	Joinery machines by Weinmann and Hundegger	x=18 mm	80480509	\|
	3-30	HSK 80E	80	DIN 69893	101	76	18		2	1.391	Joinery machines by Weinmann and Hundegger	x=18 mm	80480508	\|
	3-30	HSK 80F	80	DIN 69893	93	76	18		2	1.294	Joinery machines by Weinmann and Hundegger	x=18 mm	80480507	\|
	3-30	HSK 100A	100	DIN 69893	120	85	18		2	2.334	Joinery machines by Weinmann and Hundegger	x=18 mm	80480511	\|
