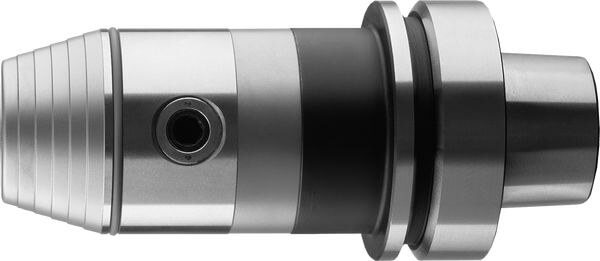

Universal Drill Chucks

Product

Drawing

Article

Description

Machine / Application

  • CNC machining centers with automatic tool changer
  • for clamping of drill bits with cylindrical shank

Design

  • continuously adjustable clamping area between 1-13 mm
  • n max = 8,000 min-1
  • hardened clamping jaws

Advantages

  • fine balance is easy on spindle and spindle bearing
  • high clamping accuracy over total lifetime of drill chuck thanks to hardened clamping jaws
  • high holding moment
  • no chips and dirt in the clamping zone thanks to special clamping jaws

Notes

  • for clockwise and counter-clockwise rotation

Table- and picture caption ...

Ø d1
[mm] 		Ø d
[mm] 		Ø D
[mm] 		L1
[mm] 		Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

1-13 HSK 63F 50 97 Homag, EIMA, Weeke, IMA from 9/94 187039
|
2-16 HSK 63F 57 102 Homag, EIMA, Weeke, IMA from 9/94 187040
|
