Sizing Saw Blades HW "WS"

Product

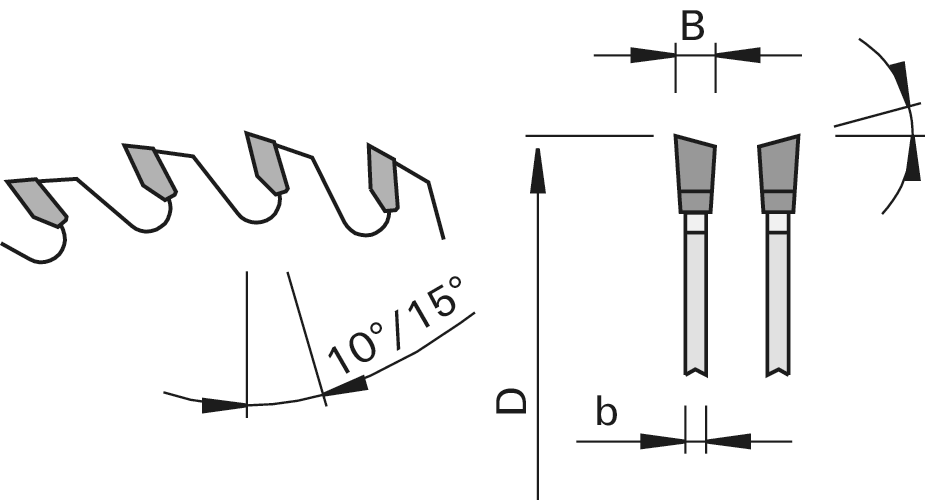

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • table saws
  • special saws
  • for sizing cuts in wood-based panels

Design

  • tooth configuration: alternate top bevel "WS"
  • cutting material: HW
  • Class-No. 107520 HL Board 10, hook angle 15°
  • Class-No. 102620/102628 HL Board 06, hook angle 10°

Advantages

  • optimum cutting quality, feed rate and adjustment for material thickness thanks to various numbers of teeth
  • noise-reduction thanks to laser ornaments from Ø 250 mm upwards

Notes

  • larger bore (max. Ø 80 mm) available for a surcharge

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z KN
[mm]
NL Hook angle
[°]
Corner∡
[°]
Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

150 3,2 2.2 30 24 2/7/42 15 WS HL Board 10 189953
|
150 3,2 2.2 30 36 2/7/42 10 WS HL Board 06 189954
|
150 3,2 2.2 30 48 2/7/42 10 WS HL Board 06 189955
|
180 3,2 2.2 30 30 2/7/42 15 WS HL Board 10 189956
|
180 3,2 2.2 30 54 2/7/42 10 WS HL Board 06 189957
|
200 3,2 2.2 30 34 2/7/42 15 WS HL Board 10 189958
|
200 3,2 2.2 30 48 2/7/42 10 WS HL Board 06 189959
|
200 3,2 2.2 30 64 2/7/42 10 WS HL Board 06 189960
|
250 3,2 2.2 30 40 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189961
|
250 3,2 2.2 30 48 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189962
|
250 3,2 2.2 30 60 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189963
|
250 3,2 2.2 30 80 2/7/42 + 2/9,5/46,5 + 2/10/60 10 15 WS HL Board 06 189964
|
300 3,2 2.2 30 48 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189965
|
300 3,2 2.2 30 60 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189966
|
300 3,2 2.2 30 72 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189967
|
300 3,2 2.2 30 96 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189968
|
315 3,2 2.2 30 48 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189969
|
315 3,2 2.2 30 72 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189970
|
350 3,5 2.5 30 54 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189971
|
350 3,5 2.5 30 72 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189972
|
350 3,5 2.5 30 84 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189973
|
350 3,5 2.5 30 108 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189974
|
400 3,5 2.5 30 60 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189975
|
400 3,5 2.5 30 84 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189976
|
400 3,5 2.5 30 96 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189977
|
400 3,5 2.5 30 120 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189978
|
400 3,5 2.5 50 60 8x8,2 2/10/60 10 WS HL Board 06 189979
|
450 3,8 2.8 30 66 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189980
|
500 3,8 2.8 30 72 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS HL Board 06 189981
|
