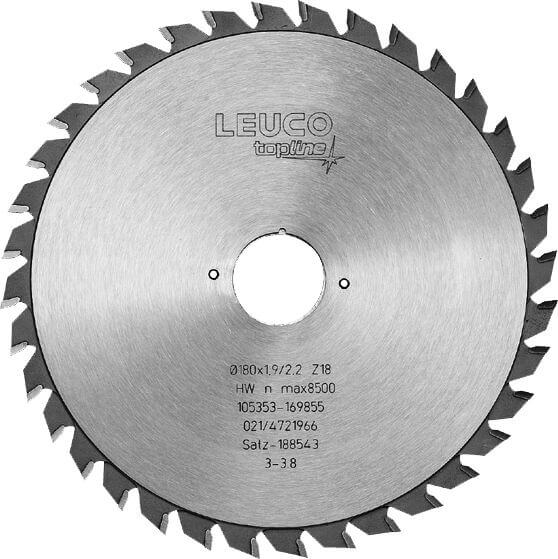

193255 - Scoring Saw Blades HW - adjustable "WS"
Product

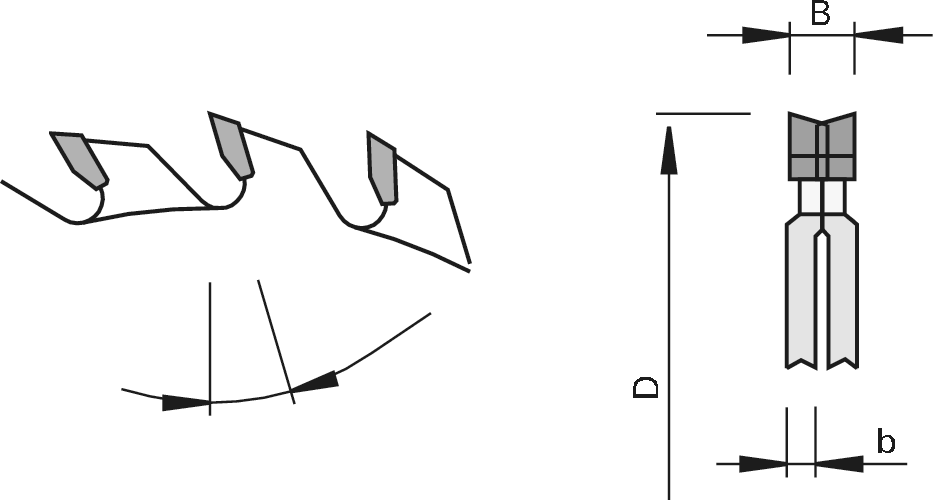

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- table saws
- panel sizing saws
- panel sizing saws with controllable scoring device
- for scoring of plastic-laminated panels
Design
- tooth configuration: alternate top bevel "WS"
- cutting material: HW HL Board 03
Advantages
- low motor output thanks to tooth configuration "WS"
Notes
- split version - cutting width adjustable with spacers
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 100 [mm] | |
| B = Cutting width | 2,8-3,6 [mm] | |
| b = Body thickness | 2.2 [mm] | |
| Ø D1 = Hub diameter | 74 [mm] | |
| Ø d = Bore diameter | 22 [mm] | |
| Z = No. of teeth | 2x10 | |
| Hook angle = Hook angle | 12 [°] | |
| Tooth geometry = Tooth configuration | WS | |
| LEUCODUR = Cutting material | HL Board 03 | |
| L = Delivery Status | ||
| Machine/Type | Altendorf, Martin, Panhans, Striebig | |
|
Dimensions entered are not listed?
available from stock |
||
