Trio cutter: Precision and power for magnetic bond board

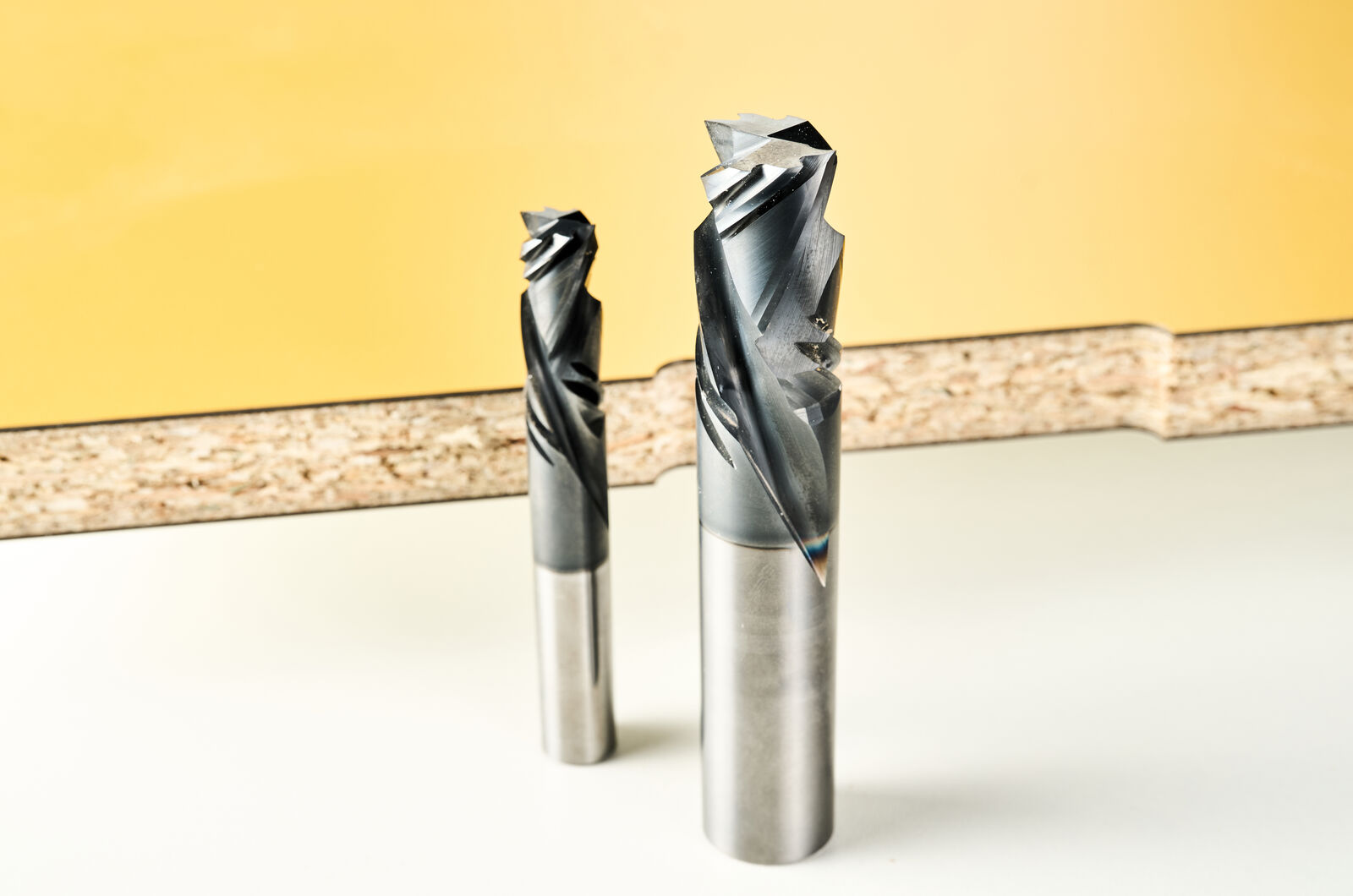

The new "LEUCO VHW-Trio finishing cutters" are available from stock in diameters of 12, 18 and 20 mm.
The new "LEUCO VHW-Trio finishing cutters" are available from stock in diameters of 12, 18 and 20 mm.

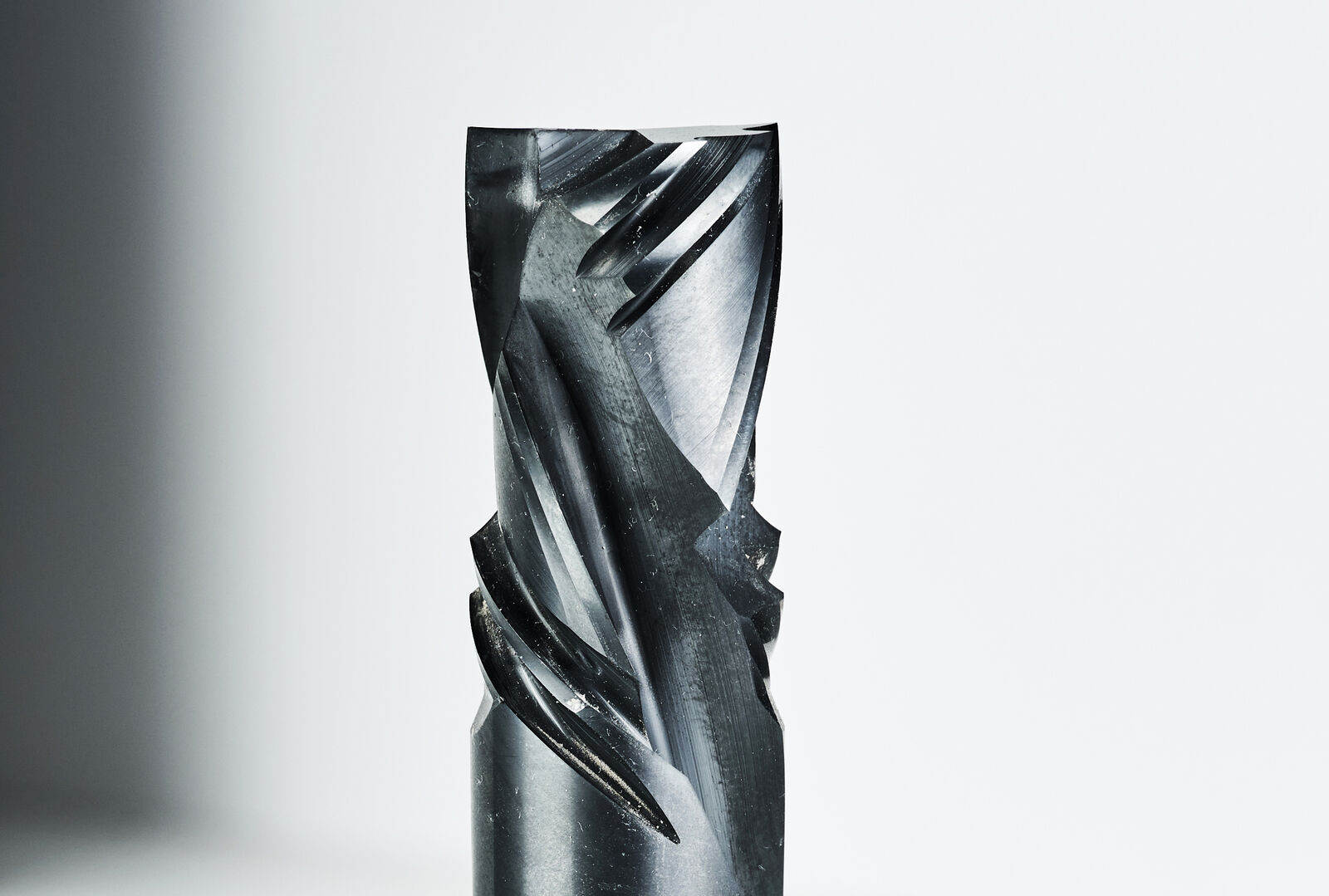

The name "Trio" describes the new technology with three different shear angles on the same cutting circle. The precision and power of the Trio is impressive: a cutter providing 3 mm stock removal from 19 mm magnetic bond board had not yet reached the end of its service life after more than 2,500 running meters of use.
The name "Trio" describes the new technology with three different shear angles on the same cutting circle. The precision and power of the Trio is impressive: a cutter providing 3 mm stock removal from 19 mm magnetic bond board had not yet reached the end of its service life after more than 2,500 running meters of use.

Efficient tool geometry

The Trio cutter is a new solid carbide tool (VHW) developed by LEUCO for machining panels with magnetic or stainless steel surfaces. Thanks to its special coating and innovative cutting edge geometry, the cutting edges of the cutter remain sharp for a long time on these extremely abrasive materials.



Tool design increases service life

The Trio cutter has a special cutting edge geometry and a LEUCO "topcoat" coating to increase precision and edge life when machining extremely abrasive sheet materials. Test reports show just how long the edge life is thanks to the exceptional cutting edge structure:

  • When machining V2A stainless steel-clad particle board, the tool still had a burr-free cutting edge even after 120 meters of use - an exception with this material. The cutter achieved the best results at a lower speed and higher feed rate. The last 20 meters were cut at 3,000 rpm and a feed rate of 5 m/min - with excellent results.
  • The Trio cutter achieved the same with magnetic bond board. The successful concept: The cutter design combines a primary cutting edge with a normal shear angle and two closely spaced cutting edges with a higher shear angle.



Trio cutter impresses in long-term use

Feedback from customers also underscores the exceptional performance of the Trio cutter: Users confirm that when used on magnetic bond board a speeds of 6000 rpm and a feed rate of 3-5 m/min, the cutter has not yet reached the end of its service life after more than 2500 running meters - at a removal rate of 3 millimeters per milling pass. In this case, the number of running meters might be even higher, as some of the material was removed twice during processing.





Exclusive cutting edge geometry only from LEUCO

Because of the special arrangement of the three different shear angles in relation to one other, resharpening the cutter is not economical. The special cutting edge geometry is available exclusively from LEUCO and is protected by a utility patent. Thanks to its long tool life and clean cutting edges, this innovative tool is currently the state-of-the-art solution with the best price-performance ratio on the market.





Optimum cutting strategy

In general, the recommended application parameters are speeds of 5000-6000 rpm and a feed rate of 4-8 m/min, depending on the diameter. Machining with feed is recommended for joint cuts. Otherwise, an oscillating milling process with an oscillation amplitude of 2-6 millimeters is preferable, depending on the cutter. If this is not possible, it is advisable to gradually offset the tool by 0.5 to 1 millimeter in the Z direction after each milling operation.





Magnetic bond boards

  • They are a special particle board with a high magnetic force, generated by an iron foil or grid embedded in the laminate.
  • Because their bonding capability and elegant appearance, these specially coated panels are used in many different areas.
  • This includes children's and kitchen furniture as well as store and exhibition stand construction. They are also used in shop window design or for displays and information boards.
