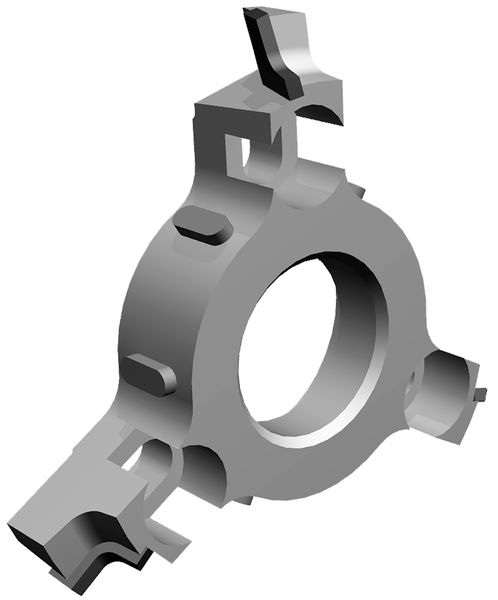

Profile cutter DP for use in multi-profile cutters - OTT-AKF
Product

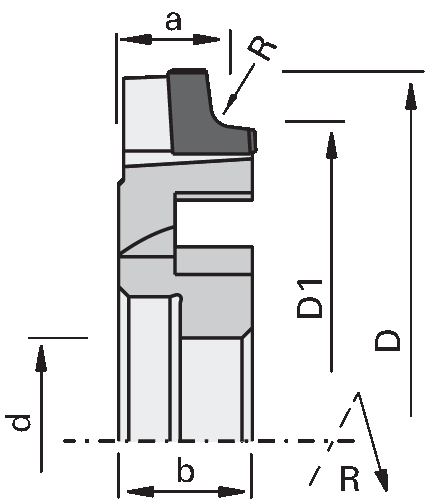

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- for use in multi-profile cutter - OTT-AKF
Design
- with shear angle
- polished face
- high-finish clearance face
Advantages
- replacement of individual profiles in the set is possible
- further profile combinations are available upon request
Notes
- not intended for resharpening
- please observe the operating instruction of the milling head during installation
- the profile change must always be coordinated between the tool manufacturer and the machine manufacturer
- tool must always have the largest profile in the set - max. radius = 3
- tools are delivered with mounting screws
|
R
[mm] |
Ø D
[mm] |
Ø D1
[mm] |
a
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 1,5 | 73 | 61 | 10.72 | 13 | 20 | 3 | 15,000 | R | 80477182 | ||
| 1,5 | 73 | 61 | 10.72 | 13 | 20 | 3 | 15,000 | L | 80477183 | ||
| 2 | 73 | 61 | 10.72 | 13 | 20 | 3 | 15,000 | R | 187082 | ||
| 3 | 73 | 61 | 10.72 | 13 | 20 | 3 | 15,000 | R | 80454064 | ||
| 3 | 73 | 61 | 10.72 | 13 | 20 | 3 | 15,000 | L | 80454063 | ||
