Roughing / Finishing Cutter VHW for lightweight panels
Product

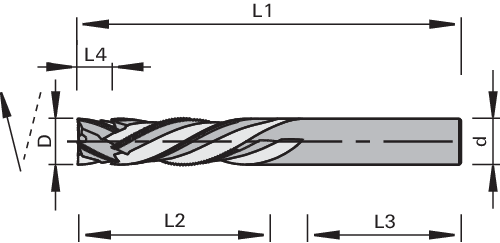

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- CNC routers
- for sizing and grooving
- for milling of openings and contours
- particularly in many lightweight construction materials, e.g. honeycomb panels, plywood, composite panels with hard foam core
- for plunge cutting with feed in the direction of the Z, X or Y axis
Design
- special serration of the roughing knives
- alternating shear angle
- special tungsten carbide
- n max=24,000 min-1
Advantages
- high cutting quality thanks to shear angle and finishing cutting edges
- reduced effort thanks to division of cut and roughing design
- smooth running
- Longer edge lives
Notes
- clamping elements:we recommend hydro expansion chuck ps-System, TRIBOS or heat shrink-fit chuck
|
Ø D
[mm] |
L4
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 12 | 9 | 20 | 12 | 45 | 86 | 2+2 | R | 187301 | ||
| 12 | 9 | 40 | 12 | 40 | 100 | 2+2 | R | 187302 | ||
| 12 | 7 | 20 | 12 | 45 | 86 | 2+2 | R | 187850 | ||
| 12 | 7 | 20 | 12 | 45 | 86 | 2+2 | L | 187852 | ||
| 12 | 7 | 40 | 12 | 40 | 100 | 2+2 | R | 187857 | ||
| 12 | 7 | 40 | 12 | 40 | 100 | 2+2 | L | 187859 | ||
| 20 | 7 | 32 | 20 | 55 | 110 | 3+3 | R | 187860 | ||
| 20 | 7 | 32 | 20 | 55 | 110 | 3+3 | L | 187862 | ||
