High-Performance Shank-Type Cutters CM DP Nesting - Z=3+3

Product

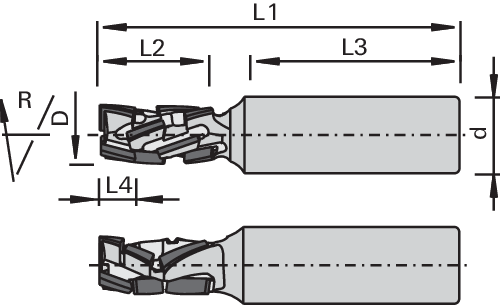

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • CNC routers
  • for panel sizing with Nesting-Technology
  • for jointing, rabbeting and *grooving (*negative version) in raw and laminated panels

Design

  • with DP plunge tip
  • face cutting for diagonal plunge-cutting
  • Ø D=12+14 mm with highly stiff tool body
  • feed rates up to 25 m/min
  • resharpening area 1.6 mm
  • n max = 24,000 min-1

Advantages

  • high cutting quality and high-quality cutting edges thanks to specially adapted cutting edge configuration
  • positive spiral: optimum upward chip evacuation towards the exhaustion
  • negative spiral: downward chip evacuation and cutting pressure
  • negative spiral especially for smaller or narrow workpieces and for grooving

Notes

  • clamping elements: use in high-precision clamping elements recommended (e.g. TRIBOS, ps-System)
  • with thread for length adjusting screw
  • in case of higher feed rates and thicker boards choose the higher diameter
  • adapt the cutting length to the panel thickness (H)
  • * indicate "H" in case of Nesting with protection board

Table- and picture caption ...

Ø D
[mm]
L4
[mm]
L2
[mm]
Ø d
[mm]
L3
[mm]
L1
[mm]
Z Helical direction nmax
[min-1]
H
[mm]
Resharpening area
[mm]
L/R Ident-No. Comp./ Inqu.
