178326 - Finishing Cutters VHW - negative spiral

Product

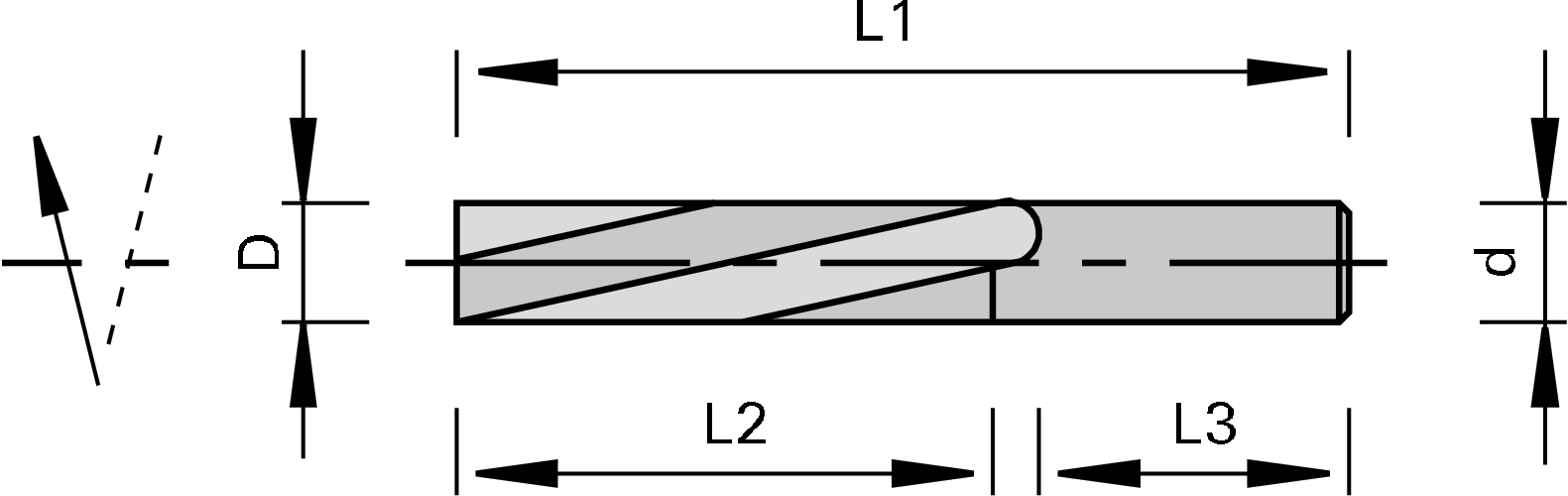

Drawing

  • Solid Tungsten Carbide
  • MEC

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • CNC routers
  • for finish cutting in solid woods and plastic
  • for cutting of cut-outs and contours
  • traveling plunge cut using Z and X or Y axis

Design

  • negative spiral for smaller workpieces hard to clamp with face side up
  • n max = 30,000 min-1

Advantages

  • cutting pressure and chip evacuation towards the bottom thanks to negative spiral

Notes

  • clamping elements: ps-System with reducing sleeves Class-No. 933280, TRIBOS, draw-in collet chuck
Feature Value
Ø D = Cutting circle diameter 4 [mm]
L2 = Cutting width 15 [mm]
Ø d = Shank diameter 4,0 [mm]
L3 = Shank length 28 [mm]
L1 = Total length 60 [mm]
Z = No. of teeth 2
Helical direction = Helical direction negative
nmax = maximum RPM 30,000 [min-1]
L/R = cutting direction R
Remarks Type 1

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request
