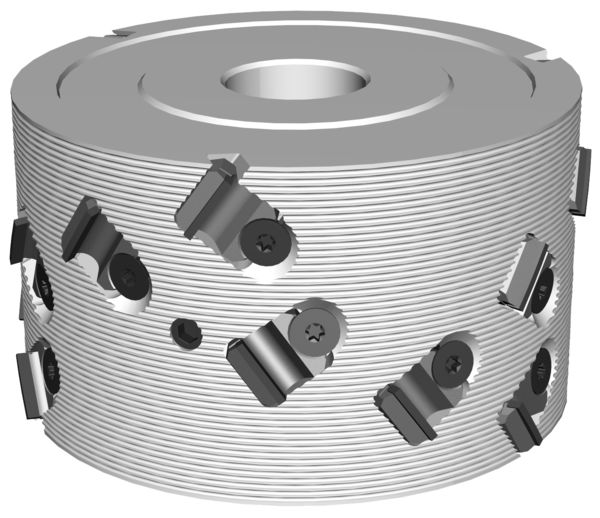

DIAMAX SmartJointer airFace Jointing Cutterheads DP - MAN

Product

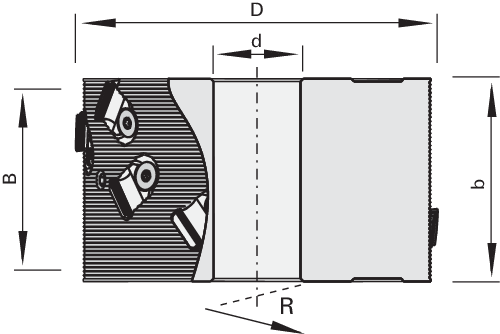

Drawing

  • Polycrystalline diamond [DP]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • For jump-milling units for very quiet jointing of solid wood and wood-based panels with and without coating, focusing particularly on diameter consistency and noise reduction

Design

  • aluminum body with airFace surface
  • with exchangeable stainless steel DP cutting edges
  • DP cutting edges with integrated stainless steel gullet
  • shear angle 35°
  • resharpening area 1.5 mm

Advantages

  • Additional noise reduction by up to -3 dB (A) thanks to the airFace design
  • Reduced power consumption thanks to low-weight design with aluminum body
  • Reduced spindle bearing load thanks to less unbalance
  • Exchangeable DP cutting edges with wear-resistant exchangeable gullet
  • Diameter consistency thanks to the use of new DP cutting edges
  • Excellent cutting quality thanks to large shear angle
  • Corrosion protection over the entire tool thanks to stainless steel segments

Notes

  • Attention: when changing the cutting edges please observe operating instructions
  • DP cutting edges packing unit 4 pieces
  • plug insert packing unit 2 pieces
  • sense of rotation according to DIN-EN 50144

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z Shear∡
[°]
nmin-nmax
[min-1]
Number of cutting edges
[pc.]
Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

125 43 70 30 3+3 35 6100-10500 12 symmetrical 186987
|
125 64 70 30 3+3 35 6100-10500 18 symmetrical 186986
|
