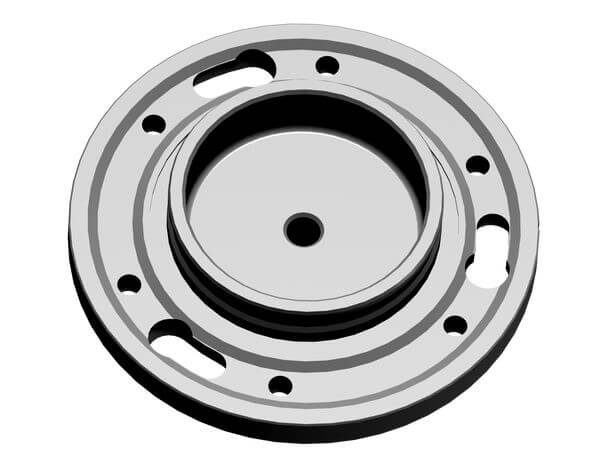

Mounting Flanges for Clamping System Ø 140 mm - tools with bore d=30 mm
Article
Description
Machine / Application
- for mounting of medium-weight tools with bore Ø 30 mm, 6 countersunk holes for M 8, TK Ø 110 mm
Design
Advantages
Notes
- for clockwise and counter-clockwise rotation
- for s-System on shaft with internal thread
- indicate shaft design when placing an order
- at least two separate tool/flange assemblies should be used per clamping element (reduced downtimes)
Ø d1
[mm] |
L2
[mm] |
L
[mm] |
Ø D
[mm] |
L1
[mm] |
Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
|||||||
30 | 17,4 | 10.8 | 137 | 43.4 | 163946 | ||
30 | 17,4 | 10.8 | 137 | 43.4 | 163945 |
