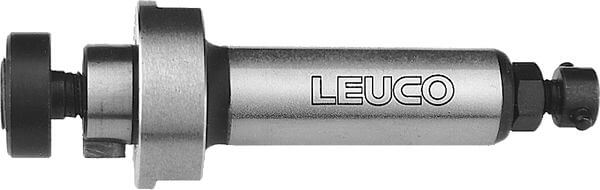

Adapters with cylindrical shank - tools with bore
Article
Description
Machine / Application
- for PS 2000-E and draw-in collet chuck for the mounting of tools with bore
Design
- tool held in place by set screws
Advantages
Notes
- for clockwise and counter-clockwise rotation
- length adjusting screw Ident-No. 172921 is required for PS 2000-E
- included in delivery: mounting arbor, set screws and length adjusting screw for ps-System for shank Ø 16 Ident-No. 172115, shank Ø 25 Ident-No. 172113

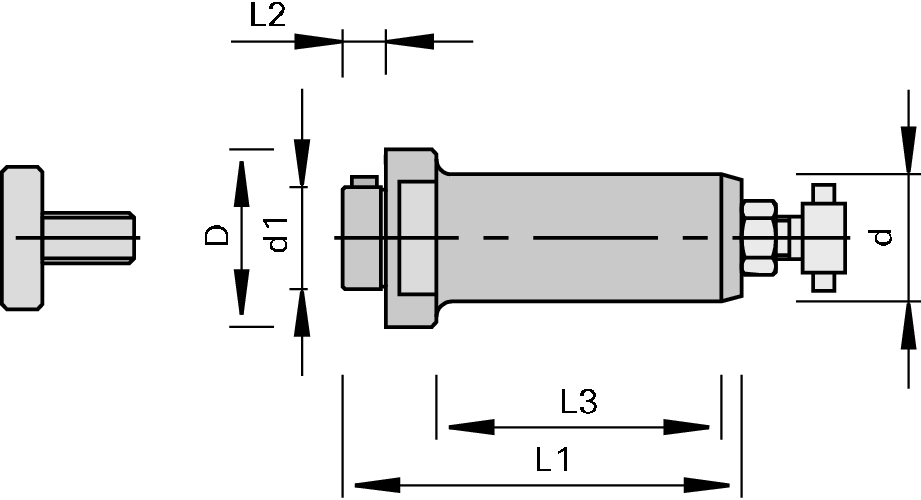

Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
L3
[mm] |
Dimension
[mm] |
Weight
[kg] |
Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||||||
20 | 8,5 | 16 | 35 | 68 | 43 | M10 | 0.001 | 171389 | ||
20 | 8,5 | 25 | 35 | 78.5 | 55 | M10 | 0.001 | 171391 |
