Retaining Bolts
Product

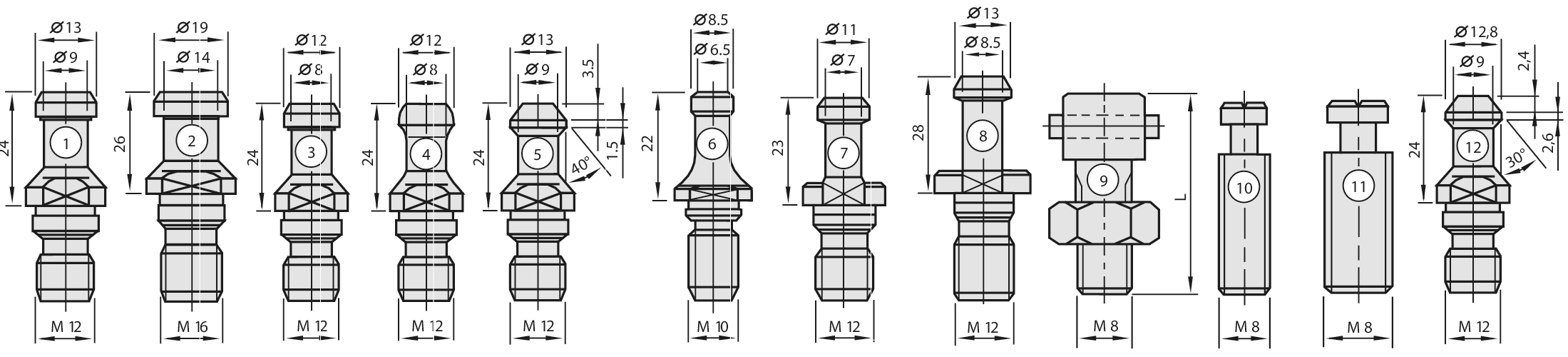

Drawing
Article
Description
Machine / Application
- for use in Hydro clamping chuck PS 2000-E, adapter and draw-in collet chuck with SK + BT-shank
Design
Advantages
Notes
- attachment screw for tools with shank diameter 25 mm
|
Dimension
[mm] |
MOQ
[pc.] |
PU
[pc.] |
Type | Machine/Type | Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 1 | 1 | 1 | IMA, Maka, Reichenbacher, Weeke | for SK 30 | 169293 | |||
| 1 | 1 | 2 | IMA, Reichenbacher, Stegherr | for SK 40 with ventilation | 169294 | |||
| 1 | 1 | 2 | IMA, Reichenbacher, Stegherr, Maka | for SK 40 | 179339 | |||
| 1 | 1 | 3 | Rover old, Biesse up to 08/92 | for SK 30 | 175637 | |||
| 1 | 1 | 4 | Rover new, Biesse (HSD motor) from 09/92, Masterwood (Colombo motor) | for SK 30 | 173641 | |||
| 1 | 1 | 5 | Alberti | for SK 30 | 177020 | |||
| 1 | 1 | 12 | CMS, Masterwood | for CMS | 177021 | |||
| Ø8,5 | 1 | 1 | 6 | Morbidelli, SCM | Retaining Bolt Ø 8.5 mm | 173646 | ||
| 1 | 1 | 7 | Shoda | for BT 30 | 176200 | |||
| 1 | 1 | 8 | Heian | for BT 35 | 176103 | |||
| M8x25 | 1 | 1 | 9 | ps-System | for ps-System 25 mm Ident-No. 173752 | 172113 | ||
| M8x19 | 1 | 1 | 10 | PS 2000-E | for PS-2000 E Ident-No. 173352 | 172921 | ||
| M8x25 | 10 | 10 | 11 | draw-in collet chuck | stop screw | 172828 | ||
