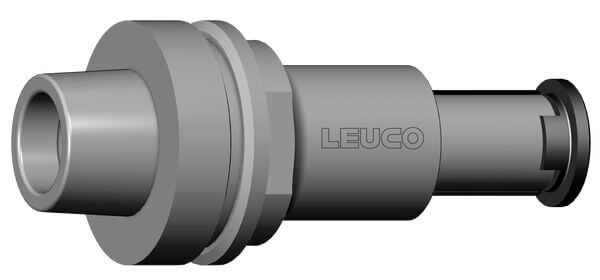

Mounting Arbors HSK 63F

Product

Drawing

Article

Description

Machine / Application

  • CNC machining centers with automatic tool changer
  • for mounting of Modula sets or single cutters

Design

  • interface DIN 69893 HSK 63 F
  • secured against rotation with double key

Advantages

Notes

  • for right- and lefthand rotation
  • included in delivery: mounting arbor with cover and countersunk screw

Table- and picture caption ...

Ø d1
[mm]
L2
[mm]
Ø d
[mm]
L1
[mm]
a
[mm]
Weight
[kg]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

25 37 HSK 63F 119 45 1.1 183768
|
25 85 HSK 63F 167 45 1.2 183769
|
25 37 HSK 63F 149 80 1.3 183770
|
25 75 HSK 63F 187 80 1.5 183771
|
