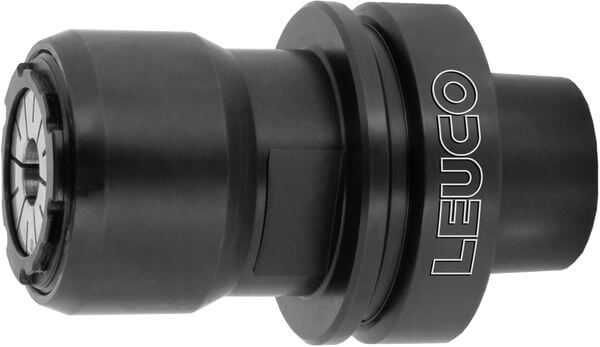

Draw-in collet chuck system 462E/OZ25 with HSK 63F - clamping zone Ø 2-25 (1") mm

Product

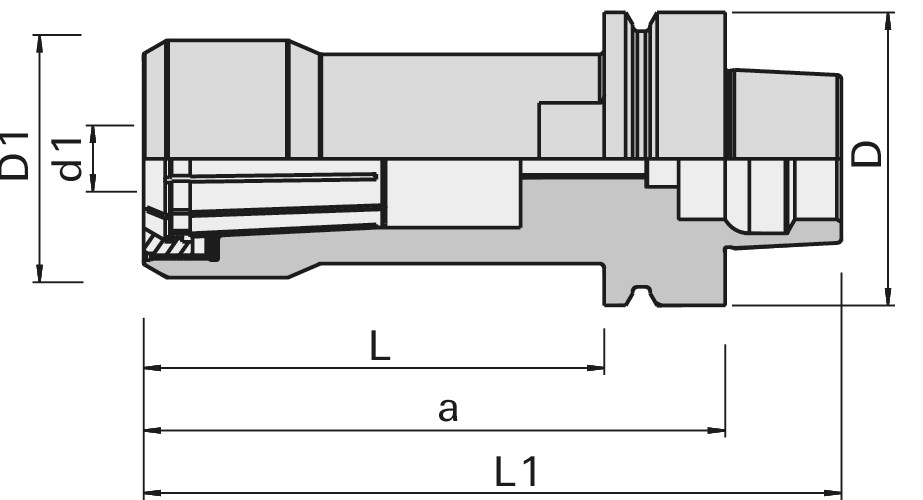

Drawing

Article

Description

Machine / Application

  • CNC machining centers, especially 5-axis
  • for precise clamping of shank-type tools with cylindrical shank

Design

  • internal collet nut
  • hardened and ground
  • for double-slotted collets
  • n max = 24,000 min-1

Advantages

  • slim design
  • high stability even with large projection
  • high concentric accuracy
  • high clamping force

Notes

  • also available for left-hand sense of rotation
  • included in delivery: collet chuck with clamping nut, without collet and mounting accessories
  • torques: 462E/OZ25: 150 Nm (110 Lbf.ft)

Table- and picture caption ...

Ø d1
[mm]
L
[mm]
Ø d
[mm]
Ø D
[mm]
Ø D1
[mm]
L1
[mm]
a
[mm]
x
[mm]
Type Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

2-25 50 HSK 63F 63 51 101 76 18 462E/OZ25 x=18 mm 184858
|
