AEROTECH-System with HSK 63F with hydro expansion clamping
Product

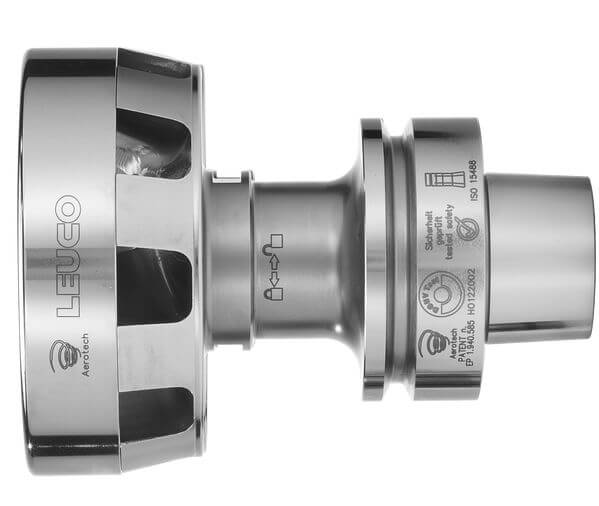

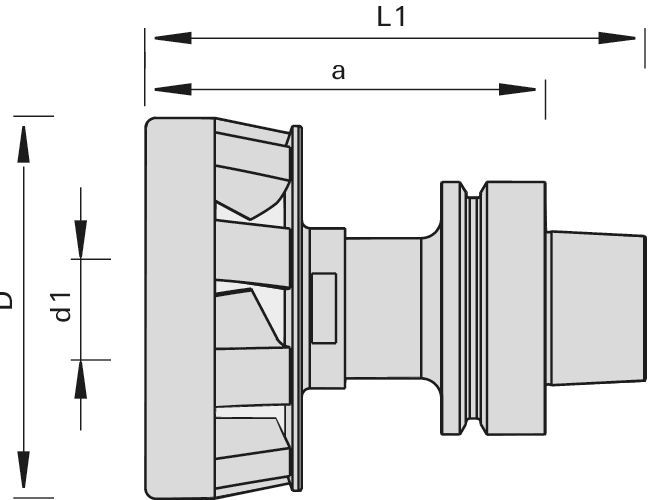

Drawing
Article
Description
Machine / Application
- CNC machining centers
- for clamping of shank-type tools and simultaneous chip guide when working
- for grooving, rabbeting in the case of pocket milling and dividing cuts as well as for the optimization of production processs e.g. with Nesting applications
Design
- Monolithic tool clamping system
- 7-wing design for machining of low-density wood and wood-based materials
- 9-wing design for machining of particle boards, MDF, OSB, hard wood, etc.
- Tool mounting by means of hydro expansion clamping technology
- Balance quality G<2.5
Advantages
- stopping of the chip flow
- cooling of the tool
- reduction of the dust quantity
- reduced efforts for cleaning and maintenance
- minimization of setup-times thanks to easy and quick tool change with hydro expansion clamping
- high cutting quality and long edge lives thanks to high concentricity
- optimum torque transfer
Notes
- sufficient vacuum performance is necessary
- pressurization via hexagonal screwdriver (included in delivery)
- clamping of smaller shank diameters is possible by means of LEUCO universal reducing sleeves
- please observe the information in the Operating Instructions
|
Ø d1
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
a
[mm] |
Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 6-16 | HSK 63F | 95 | 122.6 | 97.6 | 9 wings | 185018 | ||
| 6-25 | HSK 63F | 105 | 131 | 106 | 7 wings | 186517 | ||
| 6-25 | HSK 63F | 105 | 131 | 106 | 9 wings | 184757 | ||
