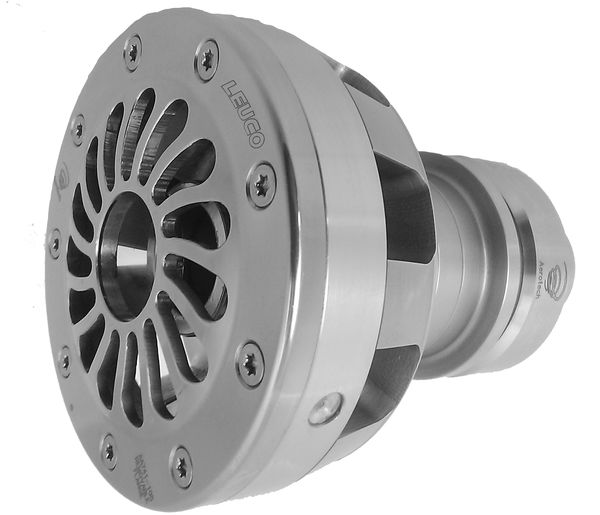

AEROTECH-System FacePlate with HSK 63F with hydro expansion clamping

Product

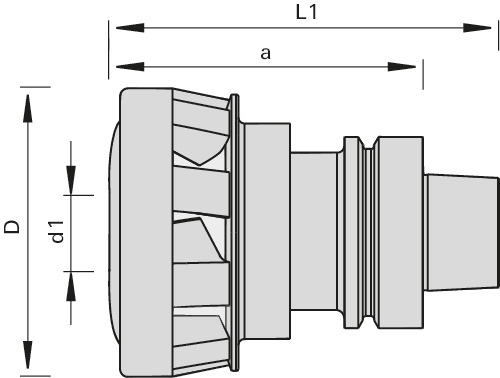

Drawing

Article

Description

Machine / Application

  • CNC machining centers
  • AEROTECH versions also permitted for new HOMAG machines
  • can be used on all machine brands
  • for clamping of shank-type tools and simultaneous chip guide when working
  • for grooving, rabbeting in the case of pocket milling and dividing cuts as well as for the optimization of production processs e.g. with Nesting applications

Design

  • AEROTECH-System FacePlate: particularly for nesting applications
  • patented monolithic tool clamping system
  • 9 wing design for the machining of particle board, MDF, OSB, hard wood etc.
  • tool mounting by means of hydro expansion clamping technology
  • balance quality G<2.5

Advantages

  • stopping of the chip flow
  • cooling of the tool
  • reduction of the dust quantity
  • reduced efforts for cleaning and maintenance
  • drawn-in, loose debris can not be trapped in the wing openings
  • this reduces the risk that the turbine is clogged which would lead to an imbalance

Notes

  • sufficient vacuum performance is necessary
  • pressurization via hexagonal screwdriver (included in delivery)
  • please observe the information in the Operating Instructions

Table- and picture caption ...

Ø d1
[mm]
Ø d
[mm]
Ø D
[mm]
L1
[mm]
a
[mm]
Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

6-16 HSK 63F 95 127 102 9 wings 185551
|
6-25 HSK 63F 105 135 110 9 wings 185550
|
