NF-Chop Saw Blades HW - neutral hook angle "TR-F"

Product

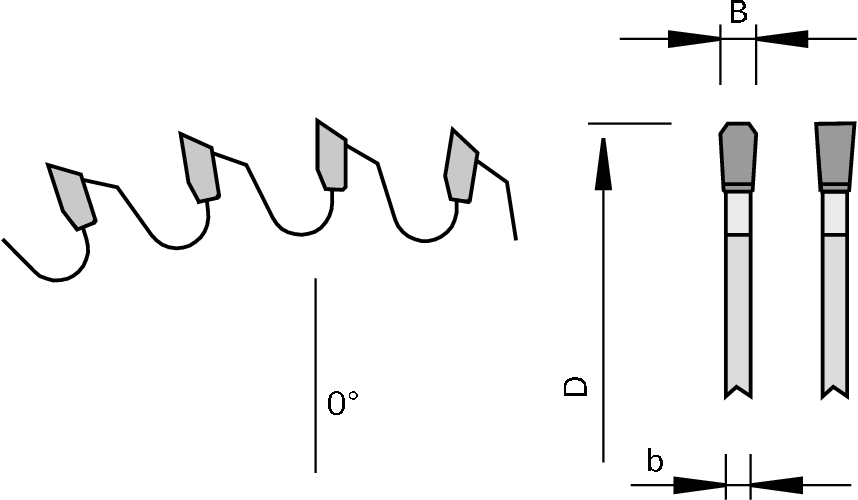

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • chop and miter saws
  • table saws
  • for clipping and mitre cuts in aluminum profiles

Design

  • neutral hook angle
  • tooth configuration: triple chip / flat "TR-F"
  • cutting material: HW HL Board 06

Advantages

  • burr-free cuts in profiles with low roughness
  • noise-reduction thanks to laser ornaments

Notes

  • tight workpiece clamping required
  • Kaltenbach as counter-bore type

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z NL Hook angle
[°]
Tooth geometry LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

380 3,6 3 32 90 0 TR-F HL Board 06 Elumatec 189111
|
420 3,8 3.2 30 102 2/10/70 0 TR-F HL Board 06 Rapid, Elumatec 189074
|
500 4,0 3.4 30 114 2/10/70 0 TR-F HL Board 06 Rapid, Elumatec 189075
|
500 4,0 3.4 32 114 2/12/64 0 TR-F HL Board 06 Eisele LMS SCA 189076
|
550 4,4 3.8 30 126 2/10/70 0 TR-F HL Board 06 Elumatec, Kaltenbach, Rapid 189113
|
