Drill Bits HW for Lamello Cabineo® pockets
Product

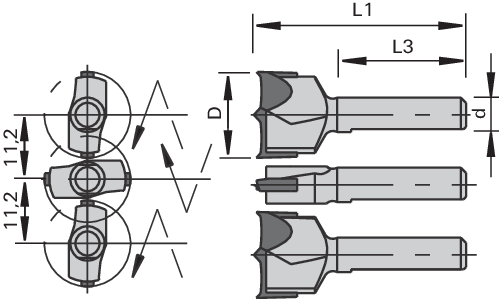

Drawing
-
- Tungsten Carbide [HW]
- MEC
Article
Description
Machine / Application
- CNC machining centers
- for precise and time-efficient plunge cutting of 3-fold bores for Lamello Cabineo® with drilling units
Design
- Set consisting of two left and a right HW cylinder boring bit
- 2 HW rakers with ground spurs
- Ground centering point
Advantages
Notes
- Type A: for Atemag drilling unit
- Type B: for Benz drilling unit
|
Ø D
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z | Type | L/R | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 15 | 6 | 22.5 | 37 | 2+2 | B | N | Benz | 80499238 | ||
| 15 | 6 | 22.5 | 37 | 2+2 | A | N | Atemag | 80499239 | ||
| 15 | 6 | 22.5 | 37 | 2+2 | A/B | L | Benz/Atemag | 80499240 | ||
| 15 | 6 | 22.5 | 37 | 2+2 | B | R | Benz | 80499241 | ||
| 15 | 6 | 22.5 | 37 | 2+2 | A | R | Atemag | 80499242 | ||
