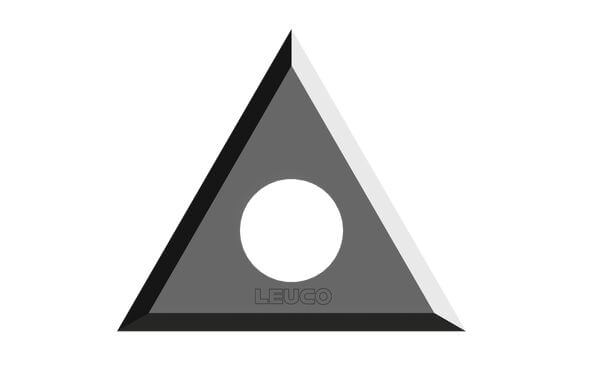

180779 - Triangular Spur HW with 3 cutting edges
Technical data
Description
Machine / Application
- for use in Leitz cutterheads
Design
- cutting material: HW
- HL Solid 20 for hard and soft woods
Advantages
Notes

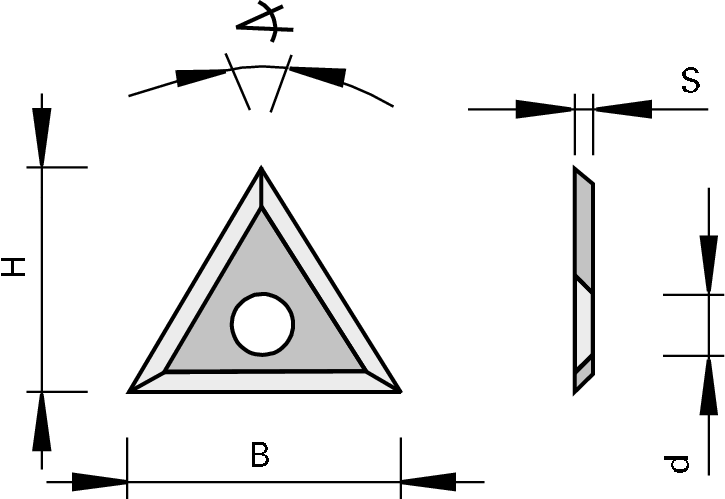

Feature | Value | |
---|---|---|
B = Width | 22 [mm] | |
H = Height | 19.05 [mm] | |
S = Thickness | 2 [mm] | |
Ø d = Bore diameter | 6,5 [mm] | |
Corner∡ = Corner angle | 60 [°] | |
LEUCODUR = Cutting material | HL Solid 20 | |
PU = Packing unit | 10 [pc.] | |
L = Delivery Status | ||
Dimensions entered are not listed?
available from stock |
