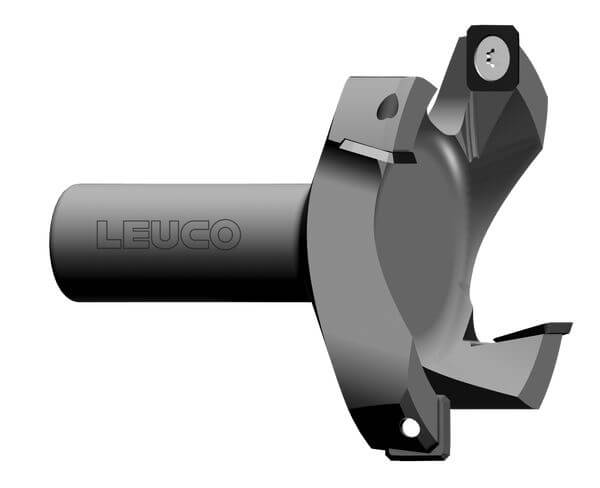

182620 - Planing Shank-Type Cutterheads HW
Product

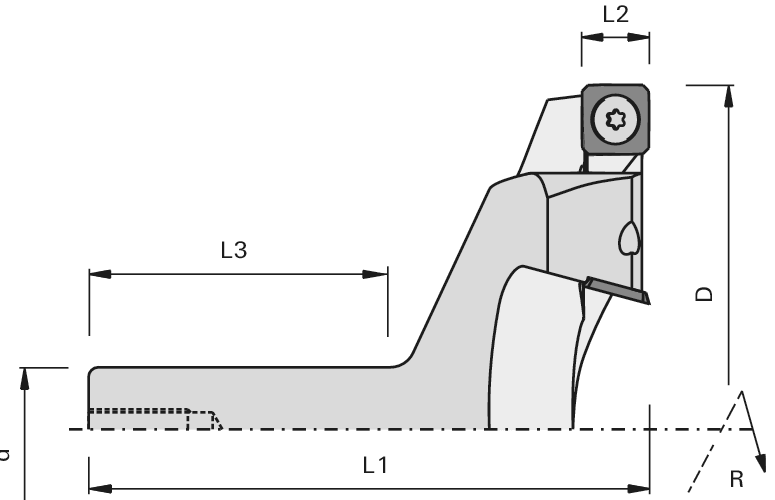

Drawing
-
- Tungsten Carbide [HW]
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for planing and panel raising in wood-based materials
- not suitable for rabbeting
Design
- cutting material: HL Solid 20
Advantages
- high milling performance when dressing the workbench boards, e.g. with Nesting technology
- smooth surface thanks to special cutting edge geometry
Notes
- with thread for length adjusting screw
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 100 [mm] | |
| L2 = Cutting width | 14 [mm] | |
| Ø d = Shank diameter | 25 [mm] | |
| L3 = Shank length | 55 [mm] | |
| L1 = Total length | 96 [mm] | |
| Z = No. of teeth | 4 | |
| nmax = maximum RPM | 15,200 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Turnover Knives
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
| Profile Turnover Knives HW with 4 cutting edges and radius - Ledinek Rotoles | 14x14x2.0 RR | 182441 | |||
|
available from stock |
|||||
