184076 - p-System High-Performance Jointing Cutters CM DP
Product

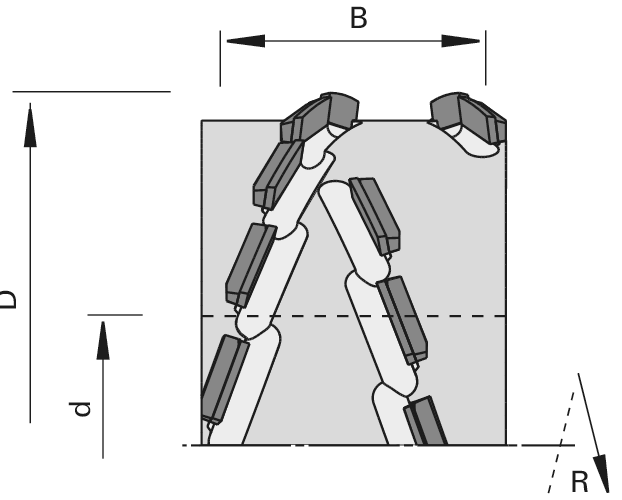

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- double end tenoners
- edge banding machines
- for chip-free high-performance jointing of solid woods (free of knots) along and across the grain
- for high-performance jointing and dividing of melamine-, paper-, HPL-laminated, foil-coated and veneered panels and lacquered surfaces
- Finish-quality in the case of fiber materials such as fabric-laminated panels, linoleum with jute fibers, cork etc.
Design
- symmetrical and asymmetrical design
- extremely scoring cut
- resharpening area 4 mm
Advantages
- maximum cutting quality and edge lives
- large depth of cut possible
- perfectly suitable for laser-edge-technology
Notes
- application against feed
- recommended feed rate per tooth: wood-based panels 0.8 mm, solid wood 0.4 mm
- crowned design on request
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 100 [mm] | |
| B = Cutting width | 62,5 [mm] | |
| b = Hub width | 40.6 [mm] | |
| Ø d = Bore diameter | 30 [mm] | |
| Z = No. of teeth | 3+3 | |
| DKN = Double keyway | 8x3,3 [mm] | |
| Shear∡ = Shear angle | 70 [°] | |
| nmax = maximum RPM | 19,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
| Machine/Type | Homag (Brandt) | |
| Remarks | asymmetrical | |
|
Dimensions entered are not listed?
available from stock |
||
