187241 - DIAMAX SmartJointer airFace Jointing Cutterheads DP
Product

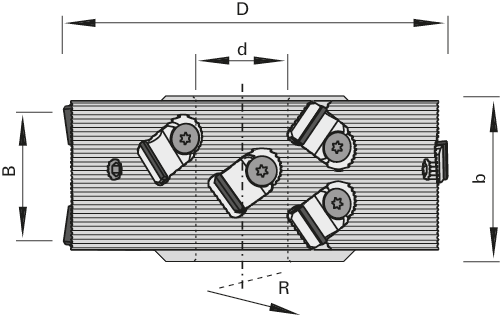

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- edge banding machines
- for jump-milling units for very quiet jointing of solid wood and wood-based panels with and without coating, focusing particularly on the reduction of unbalance and noise
Design
- aluminum body with airFace surface
- with exchangeable stainless steel DP cutting edges
- DP cutting edges with integrated stainless steel gullet
- shear angle 35°
- resharpening area 1.5 mm
Advantages
- additional noise reduction by up to -3 dB (A) thanks to the airFace design
- reduced power consumption thanks to low-weight design with aluminum body
- easy on spindle bearing thanks to less unbalance
- exchangeable DP cutting edges incl. wear-resistant exchangeable gullet
- excellent cutting quality thanks to large shear angle
- corrosion protection of the entire tool by stainless steel segments
Notes
- Attention: when changing the cutting edges please observe operating instructions
- DP cutting edges packing unit 4 pieces
- plug insert packing unit 2 pieces
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 150 [mm] | |
| B = Cutting width | 43 [mm] | |
| b = Hub width | 40 [mm] | |
| Ø d = Bore diameter | 30 [mm] | |
| Z = No. of teeth | 4+4 | |
| DKN = Double keyway | 8x3,3 [mm] | |
| Shear∡ = Shear angle | 35 [°] | |
| nmax = maximum RPM | 9,000 [min-1] | |
| Number of cutting edges | 16 [pc.] | |
| L = Delivery Status | ||
| Machine/Type | Homag | |
| Remarks | symmetrical | |
|
Dimensions entered are not listed?
available from stock |
||
Turnover Knives
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
|
DP cutting edge | 14,2x8.9x17.2N | 187245 | ||
|
available from stock |
|||||
