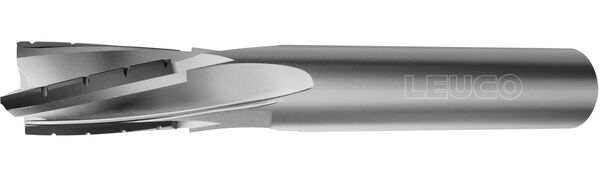

187200 - CM070 Shank-type cutter DP (spiral end mill)
Product

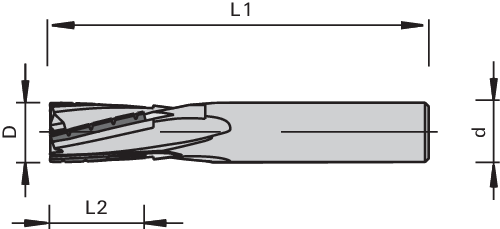

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- Can be used on CNC and gantry machines
- Standard tools (ID 80474998-80475001) in diameters 6.0 mm and 8.0 mm
- With pushing cut and chip breaker for composites
- With pulling cut without chip breaker for NF metals (aluminum, titanium, ...)
Design
- Constant hook angle along the entire edge length
- Large spiral angles and number of teeth are possible also for small diameters
- Plunge cuts into the material only possible in helix or ramping motion
Advantages
- Smooth running and cutting surface free of tool marks due to continuous, spiral DP edges
- Can be resharpened up to 3 times
Notes
- Face cutting edge or plunge tip and other dimensions and configurations on request
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter (inch) | 1/2 [inch] | |
| L2 = Cutting width | 20 [mm] | |
| Ø d = Shank diameter (inch) | 1/2 [inch] | |
| L1 = Total length | 81 [mm] | |
| Z = No. of teeth | 4 | |
| Helical direction = Helical direction | positive | |
| Shear∡ = Shear angle | 15 [°] | |
| Type = Type | B | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
