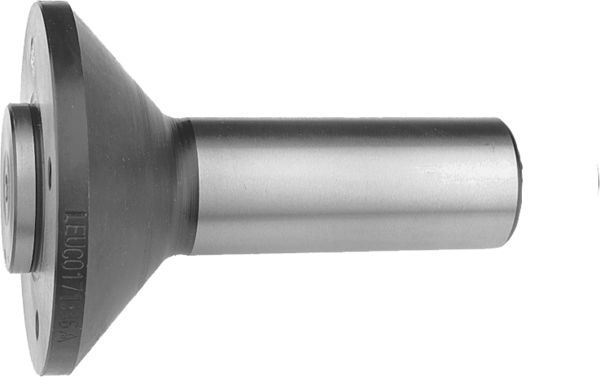

Adapters with cylindrical shank - saw blades, grooving cutters and cutters
Article
Description
Machine / Application
- for PS 2000-E and draw-in collet chuck for the mounting of tools with bore
Design
- tool attached and secured against rotation with screws
Advantages
Notes
- for right-hand and left-hand rotation
- for PS 2000-E, the length adjusting screw ID no. 172921 is required
- clamping length L2 = 30 and 36 mm for one-piece and multi-piece cutters and cutterheads
- clamping length L2 = 4 an 5 mm for circular saw blades and grooving tools
- Scope of delivery: Adapter for Lamello Clamex P® including 4 countersunk screws, all other adapters without countersunk screws. Screws of the required length must be ordered separately depending on the application.

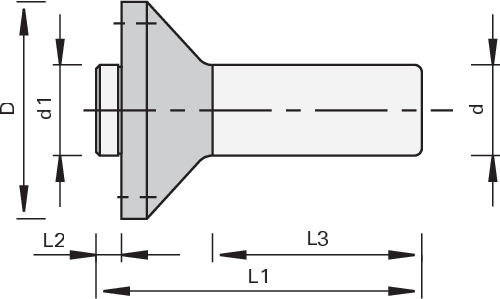

Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
L3
[mm] |
Dimension
[mm] |
NL |
Weight
[kg] |
Machine/Type | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||||||||
22 | 4,0 | 16 | 50 | 68 | 45 | 4xM5 | 4/M5/34 + 4/M4/36 | 0.256 | 184277 | |||
22 | 4,0 | 25 | 50 | 92 | 60 | 4/M5/34 + 4/M4/36 | 0.5 | 184276 | ||||
30 | 4,0 | 16 | 60 | 80 | 60 | 4/M6/48 | Lamello Clamex P® | 184304 | ||||
30 | 4,0 | 25 | 60 | 90 | 70 | 4/M6/48 | Lamello Clamex P® | 184305 | ||||
25 | 30 | 25 | 60 | 111 | 60 | 6/M6/48 | 0.715 | 168814 | ||||
30 | 36 | 25 | 60 | 117 | 60 | 6/M6/48 | 0.8 | 168815 | ||||
30 | 5,0 | 25 | 66 | 92 | 60 | 30x5x25 | 4/M5/48 | 0.001 | 171386 |
