182062 - Mounting Arbors Weinig HSK
Product
Drawing
Technical data
Description
Machine / Application
- profile machines Weinig Powermat
- for mounting of tools with bore
Design
Advantages
Notes
- for right- and lefthand rotation
- other dimensions on request

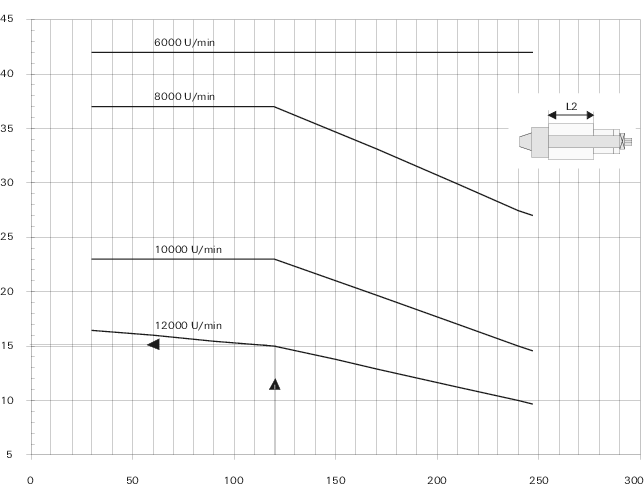

- for permissible RPM please refer to diagram
- attention: please observe the recommended tightening torque 80 Nm!
| Feature | Value | |
|---|---|---|
| Ø d1 = Adapter size on the tool side | 40 [mm] | |
| L2 = Effective length | 40 [mm] | |
| Ø d = Adapter size on the machine side | Weinig HSK [mm] | |
| Ø D = Diameter | 85 [mm] | |
| a = Distance to machine | 26 [mm] | |
| NL = Pin holes | 2/6/54 + 2/M6/54 | |
| Weight = Weight | 1.9 [kg] | |
| L = Delivery Status | ||
|
