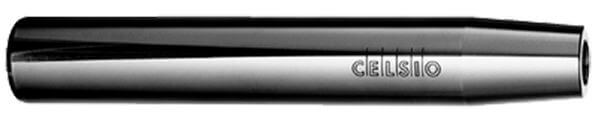

Heat-shrinking chuck extensions CELSIO
Product

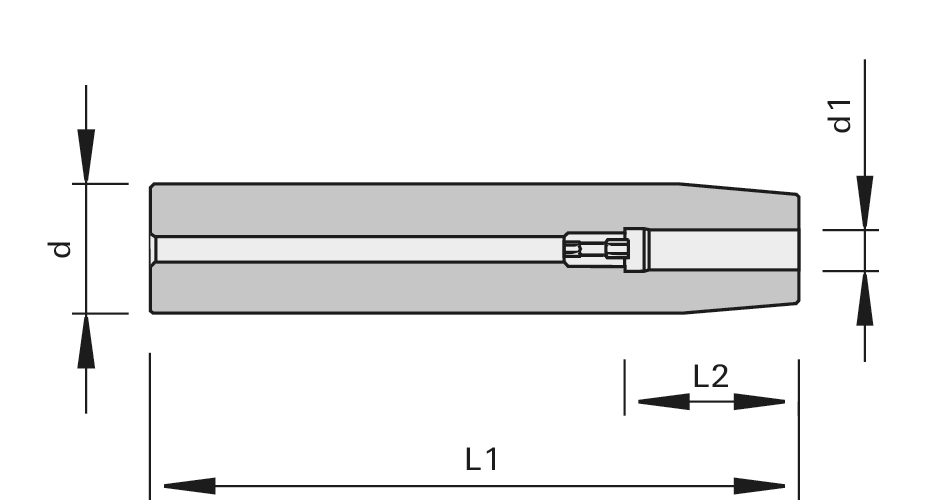

Drawing
Article
Description
Machine / Application
- CNC machining centers
- for milling applications with difficult to reach workpiece areas
Design
- hot work tool steel with special surface treatment process for particularly long tool life, temperature resistance and form stability
- run-out accuracy < 0.003 measured in the clamping diameter
- with adjusting screw for length adjustment
Advantages
- also shanks with Weldon or Whistle notch can be used
- best clamping results are achieved with fully cylindrical shanks with tolerance h6
- slim construction according to DIN 69882-8
- shrinking of HW and HS tools with shank tolerance h6
Notes
- clamping elements: we recommend hydro expansion chuck ps-System, TRIBOS or heat shrink-fit chuck
|
Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||
| 8 | 34 | 25 | 160 | 185243 | ||
| 10 | 42 | 25 | 160 | 185244 | ||
| 12 | 47 | 25 | 160 | 185245 | ||
| 16 | 50 | 25 | 160 | 185246 | ||
