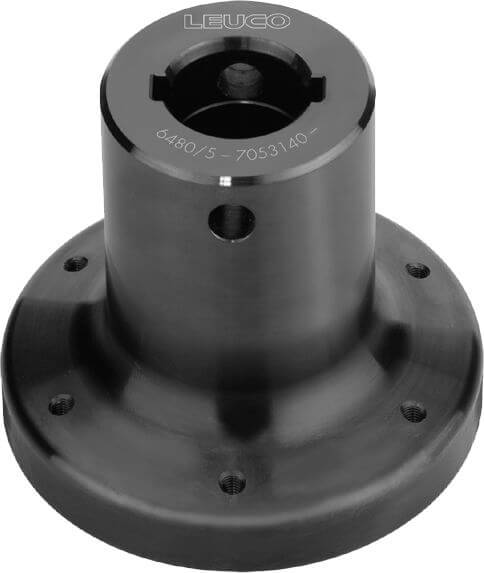

Mounting Flanges - scoring saw blades (Homag (Brandt), IMA)
Product
Drawing
Article
Description
Machine / Application
- double end tenoners
- edge banding machines Homag (Brandt), IMA
- for mounting of HW scoring saw blades and DP scoring saw blades
Design
- tempered design
- mating and seating surfaces ground
Advantages
Notes
- for clockwise and counter-clockwise rotation
- for DP circular saw blades the cylindrical head screw Ident-No. 001869 is necessary (to be ordered separately)
- countersink screw included in delivery
- lid and cylinder head screws to be ordered separately, if required
|
Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
L3
[mm] |
DKN
[mm] |
NL | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 65 | 2,2 | 30 | 109 | 95 | 63 | 8x4 | 6/M5/90 | Homag (Brandt), IMA | 006480 | ||
| 65 | 2,2 | 35 | 109 | 95 | 75 | 10x3,3 | 6/M5/90 | Homag (Brandt), IMA | 182128 | ||
