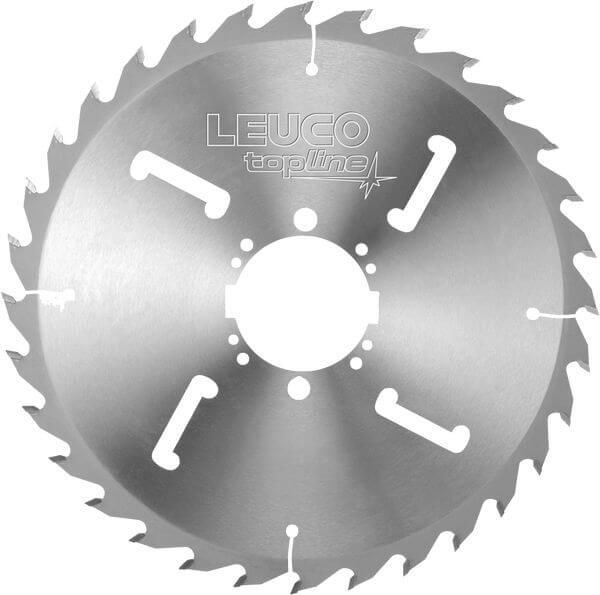

Gang-Rip Saw Blades HW with cooling slots "F"
Article
Description
Machine / Application
- molders
- gang-rip saw with one or two shafts (e.g. Raimann, Paul, Costa, ...)
- for precise ripping cuts in dry and planed hard woods
Design
- tooth configuration: flat "F"
- cutting material: HW HL Board 10
Advantages
- special design and tungsten carbide grade for highest cutting quality and very long edge lives
Notes
- for inquiries / orders enclose specification sheet (see appendix)
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Ø dmax
[mm] |
Max. flange Ø
[mm] |
Z |
Number of cooling slots
[pc.] |
DKN
[mm] |
NL |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
|||||||||||||||
250 | 3,4 | 2.2 | 30 | 80 | 120 | 24 | 3 | 20 | F | HL Board 10 | 189275 | ||||
300 | 3,4 | 2.2 | 80 | 100 | 140 | 28 | 4 | 18,5x5 | 6/5,5/91 + 4/6,6/95 + 2/13/100 | 20 | F | HL Board 10 | 189276 | ||
300 | 3,4 | 2.2 | 30 | 100 | 130 | 28 | 4 | 20 | F | HL Board 10 | 189277 | ||||
350 | 3,6 | 2.4 | 30 | 100 | 140 | 32 | 4 | 20 | F | HL Board 10 | 189279 | ||||
350 | 3,6 | 2.4 | 80 | 100 | 140 | 32 | 4 | 18,5x5 | 6/5,5/91 + 4/6,6/95 + 2/13/100 | 20 | F | HL Board 10 | 189280 | ||
500 | 4,0 | 2.8 | 30 | 100 | 165 | 40 | 4 | 20 | F | HL Board 10 | 189282 |
