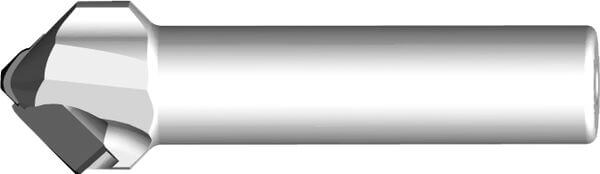

V-Groove Cutter DP for aluminum composite materials
Product

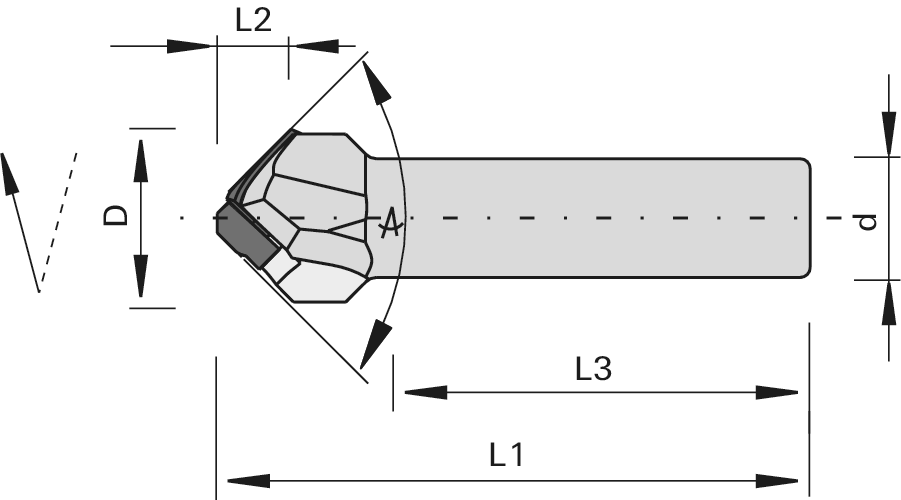

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- CNC machines
- for V-grooves in aluminum composite materials (Alucobond, Dibond, etc.)
Design
- cutting material: DP
- topline design

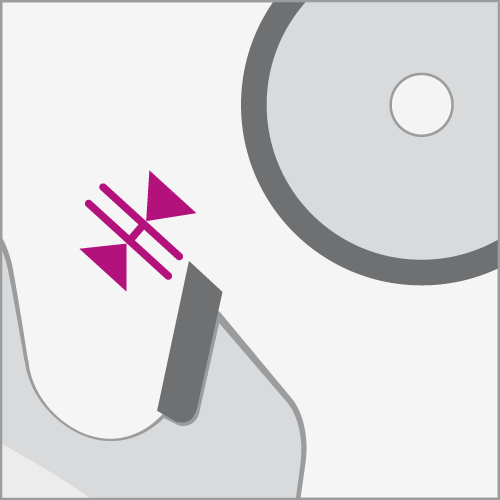

- resharpening area 2 mm
Advantages
- very long edge lives particularly in composite materials with mineral core
- optimal cutting quality thanks to polished face and special division of cut
Notes
- clamping elements: ideal use in precision clamping elements e.g. ps-System, TRIBOS or heat-shrinking chuck
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z |
nmax
[min-1] |
Resharpening area
[mm] |
L/R |
∡ of point
[°] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 18 | 7,5 | 12 | 40 | 60 | 1+1 | 24,000 | 2 | R | 90 | 186499 | ||
| 32 | 6,2 | 12 | 40 | 60 | 1+1 | 24,000 | 2 | R | 135 | 186500 | ||
