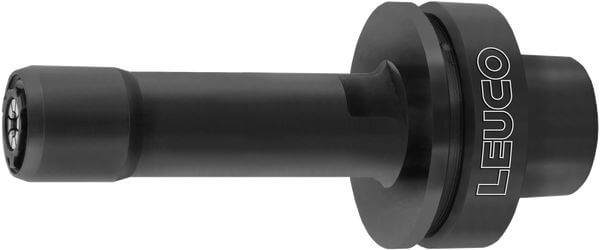

Draw-in collet chuck system 426E/ER16 with HSK 63F - clamping zone Ø 1-10 mm

Product

Drawing

Article

Description

Machine / Application

  • CNC machining centers, especially 5-axis
  • for precise clamping of shank-type tools with cylindrical shank

Design

  • internal collet nut
  • hardened and ground
  • for double-slotted collets
  • n max = 24,000 min-1

Advantages

  • slim design
  • high stability even with large projection
  • high concentric accuracy
  • high clamping force

Notes

  • also available for left-hand sense of rotation
  • included in delivery: collet chuck with clamping nut, without collet and mounting accessories
  • torques: 426E/ER16: 50 Nm (44 Lbf.ft)

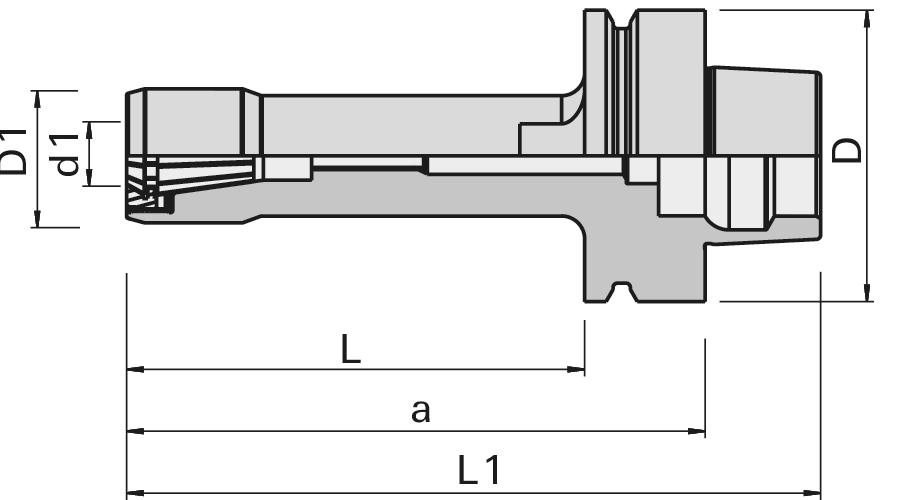

Table- and picture caption ...

Ø d1
[mm] 		L
[mm] 		Ø d
[mm] 		Ø D
[mm] 		Ø D1
[mm] 		L1
[mm] 		a
[mm] 		x
[mm] 		Type Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

1-10 50 HSK 63F 63 29 101 76 18 426E/ER16 SW22 184847
|
1-10 74 HSK 63F 63 29 125 100 18 426E/ER16 SW22 184848
|
1-10 99 HSK 63F 63 29 150 125 18 426E/ER16 SW22 184849
|
1-10 124 HSK 63F 63 29 175 150 18 426E/ER16 SW32 184850
|
